Abutment Connection
others
Abutment Connection Type
one piece (no connection)
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
wider than body
Implant Cervical Features
polished surface, unpolished surface
Implant Apical Shape
flat apex
Implant Body Surface
acid etching
Implant Material
titanium alloy grade 5 (Ti6Al4V)

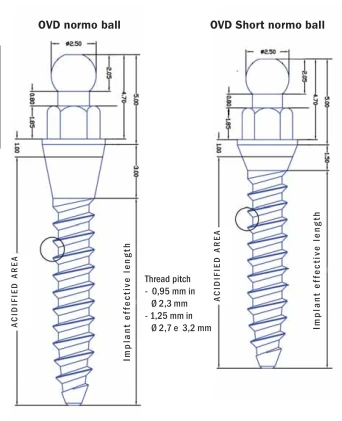

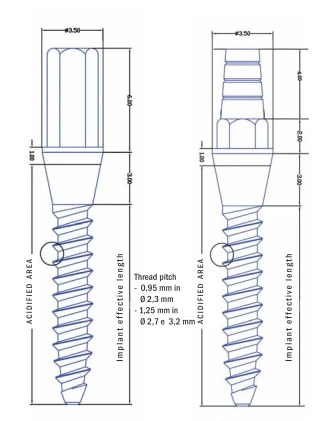

Implant Body Thread: Implant Diameter 2.3mm-Thread Pitch 0.95mm.
Implant Diameter 2.7mm,3.2mm-Thread Pitch 1.25mm.
Implant Cervical Features: Polished 1.0mm Height. Nano 3-None Polished

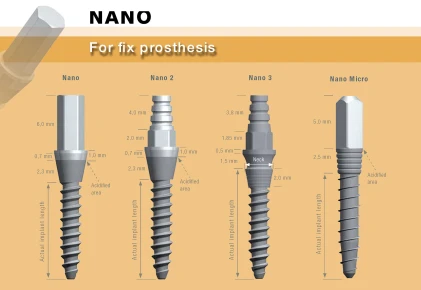

Platform to Abutment Connection: One Piece. Nano Standard and Nano 2- Square Abutment. Nano OVD- Ball Abutment.
Sizes: Implant Diameter:2.3mm,2.7mm,3.2mm.
Implant Length:10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter 2.7mm,3.2mm-Thread Pitch 1.25mm.
Implant Cervical Features: Polished 1.0mm Height. Nano 3-None Polished
Platform to Abutment Connection: One Piece. Nano Standard and Nano 2- Square Abutment. Nano OVD- Ball Abutment.
Sizes: Implant Diameter:2.3mm,2.7mm,3.2mm.
Implant Length:10.0mm,11.5mm,13.0mm,16.0mm.
