Abutment Connection
external
Abutment Connection Type
external morse taper, external hex
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
reverse buttress
Implant Cervical Shape
wider than body
Implant Cervical Features
polished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Body Surface
acid etching, sandblast
Implant Material
commercially pure titanium (grade 4)

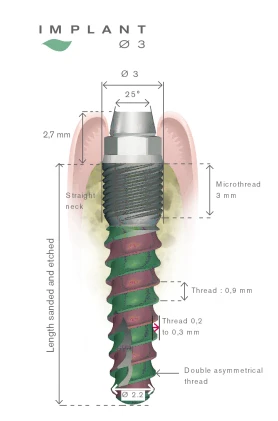

Implant Body Thread: Thread pitch:0.9mm.
Implant Cervical Features: Polish 0.4mm. Micro-thread 2.3mm.

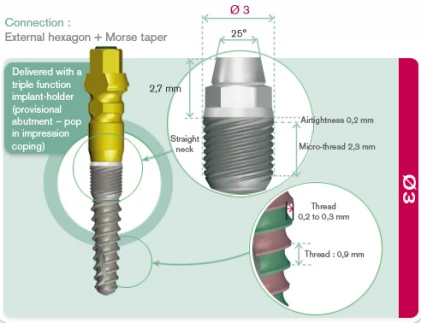

Platform to Abutment Connection: External Hexagon. Above External Taper 25 deg.
Connection Height 2.7mm. Platform Diameter 3.0mm.

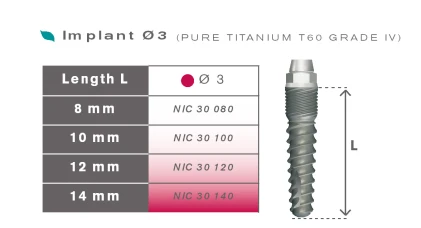

Sizes: Implant Diameter:3.0mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Implant Cervical Features: Polish 0.4mm. Micro-thread 2.3mm.
Platform to Abutment Connection: External Hexagon. Above External Taper 25 deg.
Connection Height 2.7mm. Platform Diameter 3.0mm.
Sizes: Implant Diameter:3.0mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
