Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal square
Implant Body Shape
tapered, cylinder
Implant Body Features
threaded
Implant Body Thread
buttress
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Shape
flat apex
Implant Apical Features
grooved
Implant Body Surface
SLA (Sand blast Large grit Acid etch)
Implant Body Thread: Double Thread.

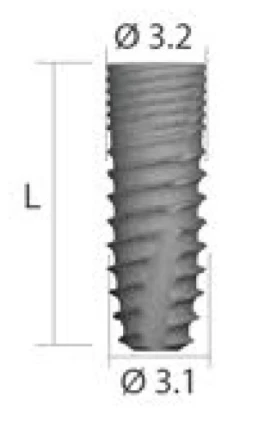

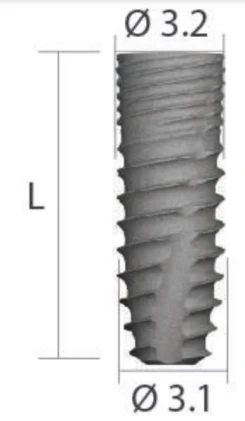

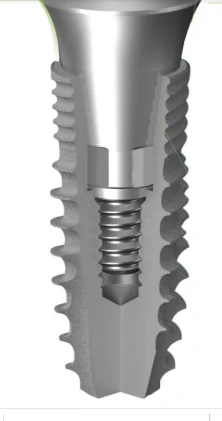

Platform to Abutment Connection: Internal Morse Taper 10 Degrees. Internal Square. Internal Thread: 1.6mm. Platform Diameter: 3.2mm.
Implant Diameter: 3.1mm.

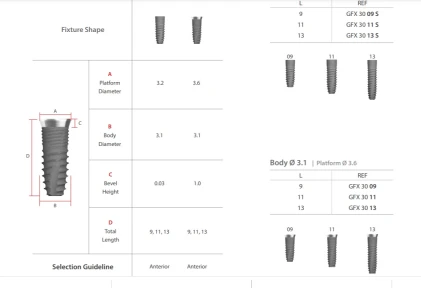

Implant Length:9.0mm,11.0mm,13.0mm.
Implants with Compatible Platforms
