Abutment Connection
others
Abutment Connection Type
one piece (no connection)
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
wider than body, straight transition from body
Implant Cervical Features
polished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Body Surface
TPO (Titanium Porous Oxide) anodic oxidation
Implant Material
commercially pure titanium (grade 4)
Implant Cervical Features: Polished. 2.0mm Height.
Implant Body Surface: BST (Galvanic Anodization Process).
Platform to Abutment Connection: One Piece.

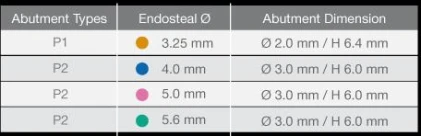

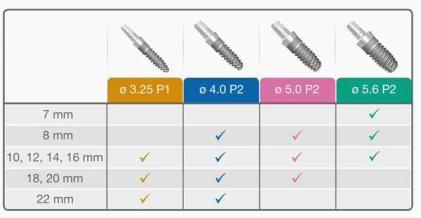

Sizes:
Implant Diameter:3.25mm. P1.
Implant Length:10.0mm,12.0mm,14.0mm,16.0mm,18.0mm,20.0mm,22.0mm.
Implant Diameter:4.0mm. P2.
Implant Length:8.0mm,10.0mm,12.0mm,14.0mm,16.0mm,18.0mm,20.0mm,22.0mm.
Implant Diameter:5.0mm. P2.
Implant Length:8.0mm,10.0mm,12.0mm,14.0mm,16.0mm,18.0mm,20.0mm.
Implant Diameter:5.6mm. P2.
Implant Length:7.0mm,8.0mm,10.0mm,12.0mm,14.0mm,16.0mm.
Implant Body Surface: BST (Galvanic Anodization Process).
Platform to Abutment Connection: One Piece.
Sizes:
Implant Diameter:3.25mm. P1.
Implant Length:10.0mm,12.0mm,14.0mm,16.0mm,18.0mm,20.0mm,22.0mm.
Implant Diameter:4.0mm. P2.
Implant Length:8.0mm,10.0mm,12.0mm,14.0mm,16.0mm,18.0mm,20.0mm,22.0mm.
Implant Diameter:5.0mm. P2.
Implant Length:8.0mm,10.0mm,12.0mm,14.0mm,16.0mm,18.0mm,20.0mm.
Implant Diameter:5.6mm. P2.
Implant Length:7.0mm,8.0mm,10.0mm,12.0mm,14.0mm,16.0mm.
