Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal hex, internal dodecagon
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex, flat apex
Implant Body Surface
SLA (Sand blast Large grit Acid etch)
Implant Material
titanium alloy grade 23 (Ti6Al4V-ELI)

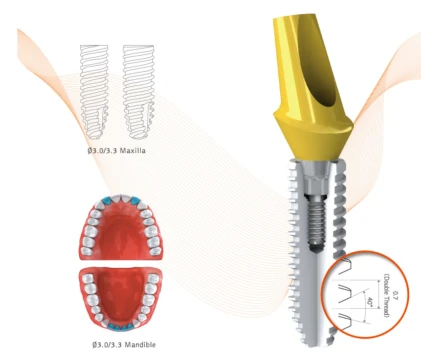

Implant Body Thread: Double Lead Thread. Pitch 0.7mm.

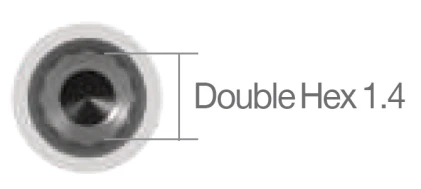

Implant to Abutment Connection: Internal morse taper 11 degrees. Internal Double Hexagon. Hexagon Width 1.4mm.

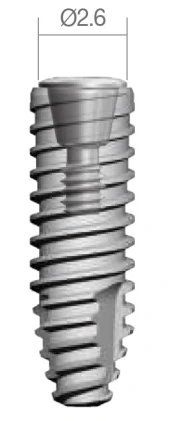

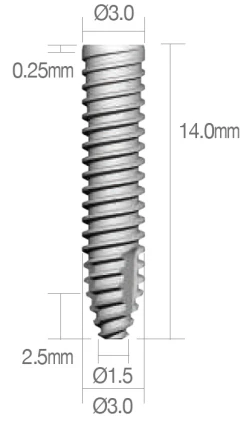

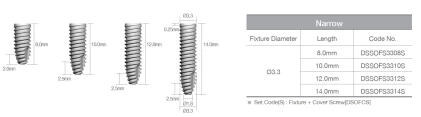

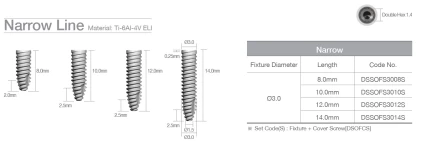

Sizes: Implant Diameter: 3.0mm, 3.3mm.

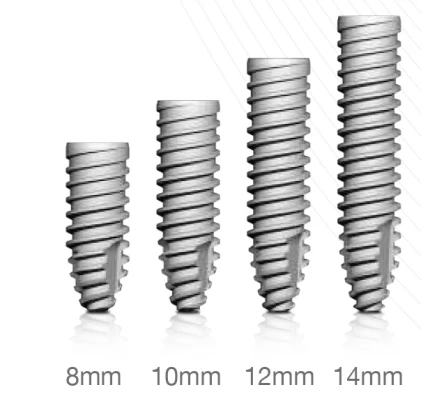

Implant Length: 8.0mm,10.0mm,12.0mm,14.0mm.
