Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal octagon
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
flat apex
Implant Material
titanium alloy grade 5 (Ti6Al4V)
Implant Cervical Features: Micro-grooves. Reverse Buttress.

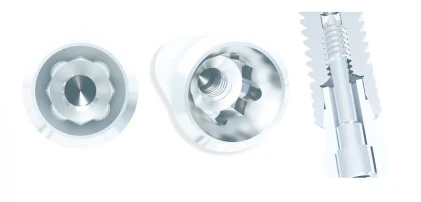

Platform to Abutment Connection: Internal Morse Taper 13 deg. Internal Modified Octagon. External Bevel.
Sizes: Implant Diameter:5.0mm. Implant Length:9.0mm,11.0mm,13.0mm.
Platform to Abutment Connection: Internal Morse Taper 13 deg. Internal Modified Octagon. External Bevel.
Sizes: Implant Diameter:5.0mm. Implant Length:9.0mm,11.0mm,13.0mm.
Implants with Compatible Platforms
