Abutment Connection
internal
Abutment Connection Type
internal dodecagon, internal morse taper, internal hex
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
wider than body
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
flat apex
Implant Body Surface
TiO2 blast+fluoride hydroflouric acid
Implant Material
commercially pure titanium (grade 4)
Implant Cervical Features: non polished, micro-thread.
Platform to Abutment Connection: Morse Taper and anti-rotation Internal Double Hexagon.
Internal Thread-M2.0
Sizes: One abutment to Implant size of connection- lilac(large).
Implant Diameter 3.5mm. Platform Diameter 4.5mm.

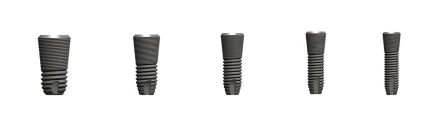

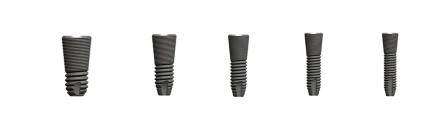

Implant Length: 9.0mm,11.0mm,13.0mm,15.0mm,17.0mm.
Implant Diameter 4.0mm. Platform Diameter 5.0mm.
Implant Length: 9.0mm,11.0mm,13.0mm,15.0mm,17.0mm.
Platform to Abutment Connection: Morse Taper and anti-rotation Internal Double Hexagon.
Internal Thread-M2.0
Sizes: One abutment to Implant size of connection- lilac(large).
Implant Diameter 3.5mm. Platform Diameter 4.5mm.
Implant Length: 9.0mm,11.0mm,13.0mm,15.0mm,17.0mm.
Implant Diameter 4.0mm. Platform Diameter 5.0mm.
Implant Length: 9.0mm,11.0mm,13.0mm,15.0mm,17.0mm.
Implants with Compatible Platforms
