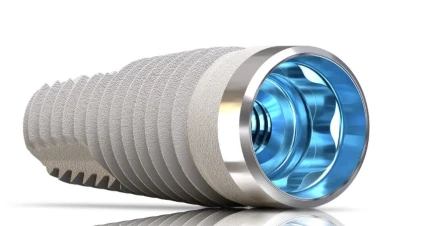

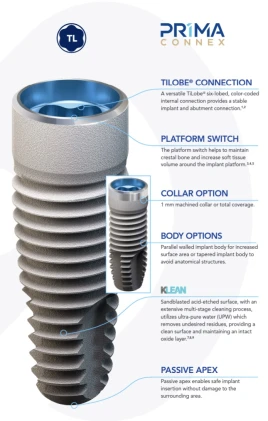

Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal six lobe
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
narrow, straight transition from body, wider than body
Implant Cervical Features
polished surface, unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Platform Color
blue
Implant Body Surface
acid etching, sandblast
Implant Material
titanium alloy grade 5 (Ti6Al4V)
Platform to Abutment Connection: Internal Morse Taper 8.5 deg. Internal Six-Lobe Below the Taper.
Platform Diameter-4.1mm.

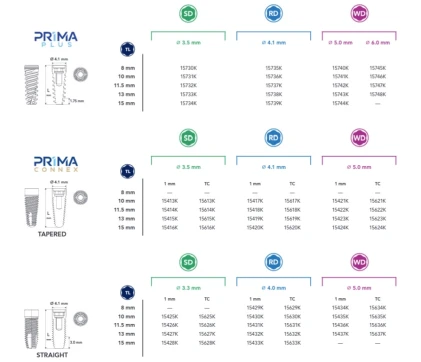

Sizes:
Implant Diameter: 4.1mm.
Implant Length: 10.0mm,11.5mm,13.0mm,15.0mm.
Implants with Compatible Platforms
