Abutment Connection
external, internal
Abutment Connection Type
external hex, internal morse taper

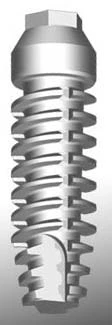

Implant Body Shape
cylinder
Implant Body Features
threaded

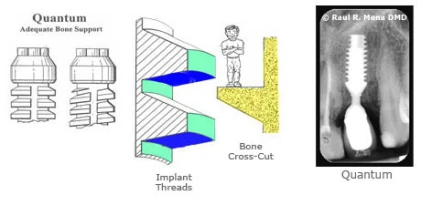

Implant Body Thread
reverse buttress
Implant Cervical Shape
wider than body
Implant Apical Features
grooved
Implant Apical Shape
flat apex
Implant Body Surface
RBM(Resorbable Blast Media), acid etching, HA (hydroxyapatite)
Implant Material
titanium alloy grade 23 (Ti6Al4V-ELI)
Implant Apical Features: 3 Grooves.

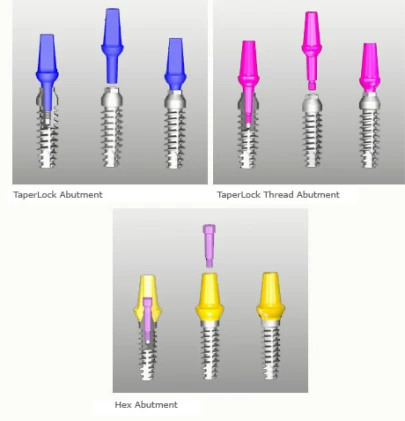

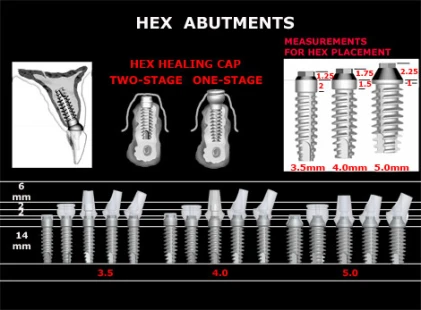

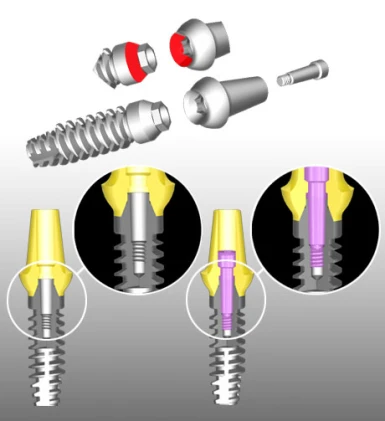

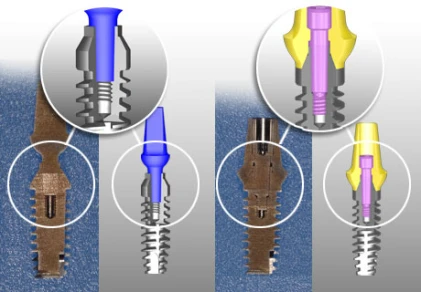

Platform to Abutment Connection: 3 options- External Hexagon with External Bevel.
Internal Morse Taper 1.5 deg. Well diameter 2.0mm.
Internal Morse Taper with thread at the end.
Sizes: Implant Diameter:3.0mm, 3.5mm, 4.0mm, 5.0mm.
Implant Length:9.0mm,11.0mm,14.0mm.
Platform to Abutment Connection: 3 options- External Hexagon with External Bevel.
Internal Morse Taper 1.5 deg. Well diameter 2.0mm.
Internal Morse Taper with thread at the end.
Sizes: Implant Diameter:3.0mm, 3.5mm, 4.0mm, 5.0mm.
Implant Length:9.0mm,11.0mm,14.0mm.
Implants with Compatible Platforms
