Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal tri lobe
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
reverse buttress
Implant Cervical Shape
narrow
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
flat apex
Implant Body Surface
RBM(Resorbable Blast Media)
Implant Body Thread: Thread Pitch 0.8mm.

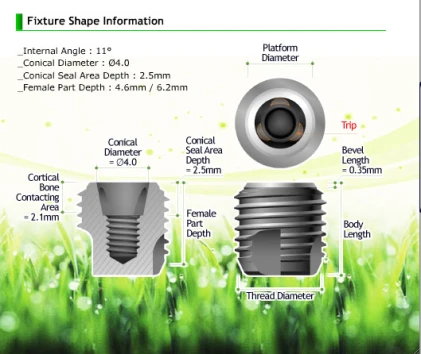

Platform to Abutment Connection: Internal Taper 11 deg. Taper Diameter:4.0mm. Taper Depth:2.5mm.
Internal Trilobe Below Taper. Bore Thread:2.5mm. External Bevel:0.35mm.
Sizes:
Platform Diameter:4.5mm. Implant Diameter:6.0mm.
Implant Length:5.0mm,6.0mm,7.0mm,8.5mm,10.0mm,11.5mm,13.0mm.
Platform Diameter:5.0mm. Implant Diameter:6.5mm.
Implant Length:5.0mm,6.0mm,7.0mm,8.5mm,10.0mm,11.5mm,13.0mm.
Platform Diameter:5.0mm. Implant Diameter:7.0mm.
Implant Length:5.0mm,6.0mm,7.0mm,8.5mm,10.0mm,11.5mm,13.0mm.
Platform Diameter:5.5mm. Implant Diameter:7.5mm.
Implant Length:5.0mm,6.0mm,7.0mm,8.5mm,10.0mm,11.5mm,13.0mm.
Platform Diameter:6.0mm. Implant Diameter:8.0mm.
Implant Length:5.0mm,6.0mm,7.0mm,8.5mm,10.0mm,11.5mm,13.0mm.
Platform to Abutment Connection: Internal Taper 11 deg. Taper Diameter:4.0mm. Taper Depth:2.5mm.
Internal Trilobe Below Taper. Bore Thread:2.5mm. External Bevel:0.35mm.
Sizes:
Platform Diameter:4.5mm. Implant Diameter:6.0mm.
Implant Length:5.0mm,6.0mm,7.0mm,8.5mm,10.0mm,11.5mm,13.0mm.
Platform Diameter:5.0mm. Implant Diameter:6.5mm.
Implant Length:5.0mm,6.0mm,7.0mm,8.5mm,10.0mm,11.5mm,13.0mm.
Platform Diameter:5.0mm. Implant Diameter:7.0mm.
Implant Length:5.0mm,6.0mm,7.0mm,8.5mm,10.0mm,11.5mm,13.0mm.
Platform Diameter:5.5mm. Implant Diameter:7.5mm.
Implant Length:5.0mm,6.0mm,7.0mm,8.5mm,10.0mm,11.5mm,13.0mm.
Platform Diameter:6.0mm. Implant Diameter:8.0mm.
Implant Length:5.0mm,6.0mm,7.0mm,8.5mm,10.0mm,11.5mm,13.0mm.
Implants with Compatible Platforms
