Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal hex

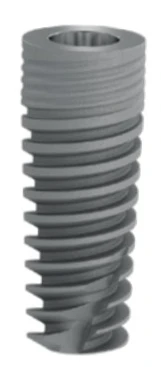

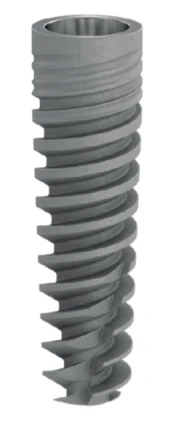

Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
buttress
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Shape
domed apex, flat apex
Implant Apical Features
grooved
Implant Body Surface
SLA (Sand blast Large grit Acid etch)
Implant Material
titanium alloy grade 23 (Ti6Al4V-ELI)
Implant Body Thread: Double Thread.
Platform to Abutment Connection: Internal Morse Taper 8 deg. Internal Hexagon. Hexagon Width-2.44mm.

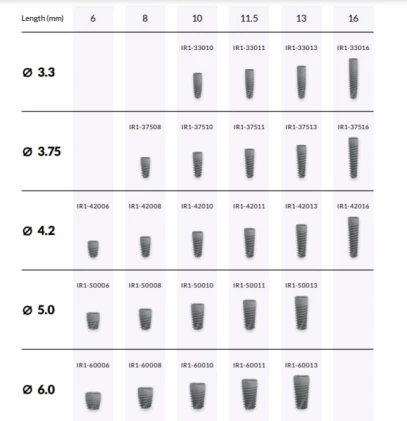

Sizes:
Implant Diameter: 3.3mm.
Implant Length: 10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter: 3.75mm.
Implant Length: 8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter: 4.2mm.
Implant Length: 6.0mm,8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.

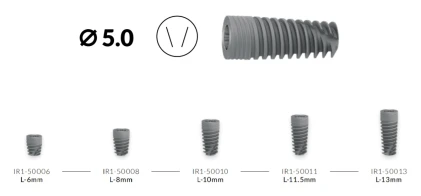

Implant Diameter: 5.0mm, 6.0mm.
Implant Length: 6.0mm,8.0mm,10.0mm,11.5mm,13.0mm.
Surface Treatment: Sandblast with Aluminum Oxide and Double Acid Etching.
