Abutment Connection
internal
Abutment Connection Type
internal three spline, internal tri lobe
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
wider than body
Implant Cervical Features
polished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Body Surface
sandblast, acid etching, SLA (Sand blast Large grit Acid etch)
Implant Material
commercially pure titanium (grade 4)

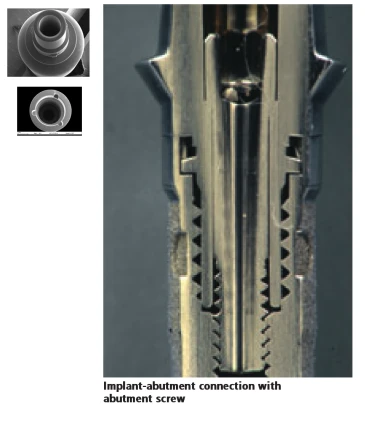

Platform to Abutment Connection: internal tri-lobe (width 0.5mm or 0.7mm, depth 1.2mm offset 120 deg).
Internal Three Spline.
Internal Thread: M1.6.

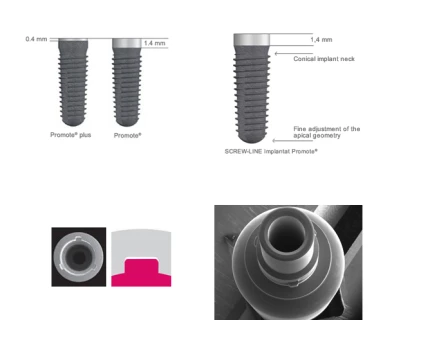

Implant Cervical Features: Polished Height- 1.6mm, 1.4mm, 0.4mm.

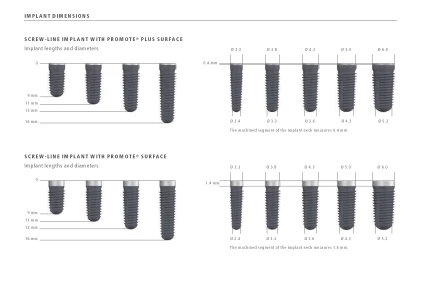

Sizes: Implant Diameter:4.3mm. Implant Length:9.0mm,11.0mm,13.0mm,16.0mm.
Internal Three Spline.
Internal Thread: M1.6.
Implant Cervical Features: Polished Height- 1.6mm, 1.4mm, 0.4mm.
Sizes: Implant Diameter:4.3mm. Implant Length:9.0mm,11.0mm,13.0mm,16.0mm.
Implants with Compatible Platforms
