Abutment Connection
internal
Abutment Connection Type
internal hex
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body, wider than body
Implant Cervical Features
polished surface
Implant Apical Features
apical hole, oblong hole
Implant Apical Shape
flat apex
Implant Body Surface
HA (hydroxyapatite), SBM (Soluble Blast Media)

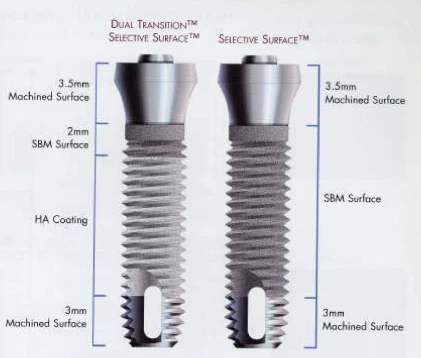

Implant Cervical Features: Polished Height-3.5mm.
Platform to Abutment Connection: Internal Hexagon. Hexagon Depth-1.0mm.

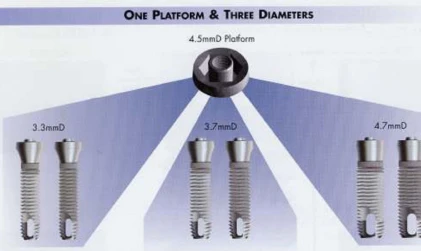

Platform Diameter-4.5mm.

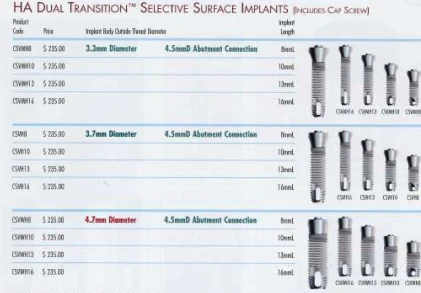

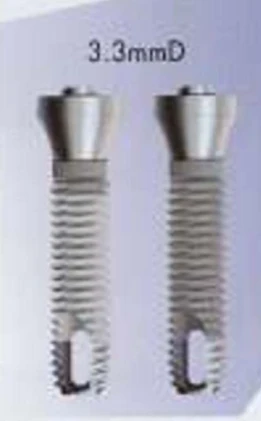

Sizes: Implant Diameter:3.3mm,3.7mm,4.7mm. Implant Length:8.0mm,10.0mm,13.0mm,16.0mm.
Paragon (Core-Vent) Acquired by Zimmer Dental.
Platform to Abutment Connection: Internal Hexagon. Hexagon Depth-1.0mm.
Platform Diameter-4.5mm.
Sizes: Implant Diameter:3.3mm,3.7mm,4.7mm. Implant Length:8.0mm,10.0mm,13.0mm,16.0mm.
Paragon (Core-Vent) Acquired by Zimmer Dental.
