Abutment Connection
internal
Abutment Connection Type
internal hex
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Body Surface
SBM (Soluble Blast Media), HA (hydroxyapatite)
Implant Apical Features: 2 Grooves.
Implant Threads: Cervical Mini Threads:4 Leads. 1.2mm pitch. Body Threads: 2 Leads 1.2mm pitch.
Platform to Abutment Connection: Internal Hex 2.0mm long. External Bevel.

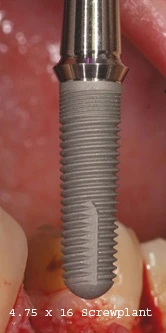

Sizes: Implant Diameter: 4.7mm. Platform Diameter: 4.7mm. Length: 8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Threads: Cervical Mini Threads:4 Leads. 1.2mm pitch. Body Threads: 2 Leads 1.2mm pitch.
Platform to Abutment Connection: Internal Hex 2.0mm long. External Bevel.
Sizes: Implant Diameter: 4.7mm. Platform Diameter: 4.7mm. Length: 8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implants with Compatible Platforms
