Abutment Connection
internal
Abutment Connection Type
internal hex
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body, wider than body
Implant Cervical Features
polished surface
Implant Apical Features
grooved
Implant Apical Shape
flat apex
Implant Body Surface
acid etching
Implant Material
commercially pure titanium (grade 4)

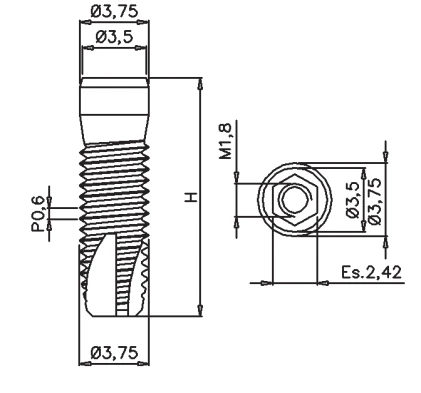

Implant Body Thread: Thread Pitch-0.6mm.
Implant to Abutment Connection: Internal Hexagon. Platform Diameter 3.5mm.
Hexagon Diameter 2.42mm. Bore Threads-M18.
Sizes:Implant Diameter 3.25mm. Implant Length: 10.0mm,11.5mm,13.0mm,15.0mm.
Implant Diameter 3.75mm. Implant Length: 8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implant to Abutment Connection: Internal Hexagon. Platform Diameter 3.5mm.
Hexagon Diameter 2.42mm. Bore Threads-M18.
Sizes:Implant Diameter 3.25mm. Implant Length: 10.0mm,11.5mm,13.0mm,15.0mm.
Implant Diameter 3.75mm. Implant Length: 8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implants with Compatible Platforms
