Abutment Connection
internal
Abutment Connection Type
internal hex
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
buttress
Implant Cervical Shape
wider than body
Implant Cervical Features
polished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Body Surface
acid etching
Implant Material
commercially pure titanium (grade 4)

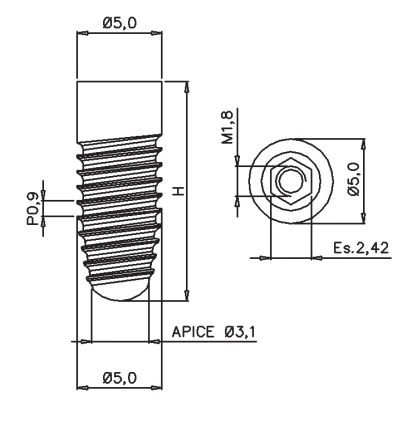

Implant Body Threads: Threads Pitch-0.9mm.
Implant to Abutment Connection: Internal Hexagon. Platform Diameter 5.0mm.
Hexagon Diameter 2.42mm. Bore Threads-M18.
Sizes:Implant Diameter 5.0mm. Implant Length: 8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implant to Abutment Connection: Internal Hexagon. Platform Diameter 5.0mm.
Hexagon Diameter 2.42mm. Bore Threads-M18.
Sizes:Implant Diameter 5.0mm. Implant Length: 8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
