Abutment Connection
internal
Abutment Connection Type
internal hex
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
square, V-shaped
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Shape
domed apex
Implant Apical Features
grooved
Implant Body Surface
SLA (Sand blast Large grit Acid etch)
Implant Material
titanium alloy grade 23 (Ti6Al4V-ELI)
Implant Body Thread: Double Thread. Thread Pitch 2.0mm with 6 Sub-threads.

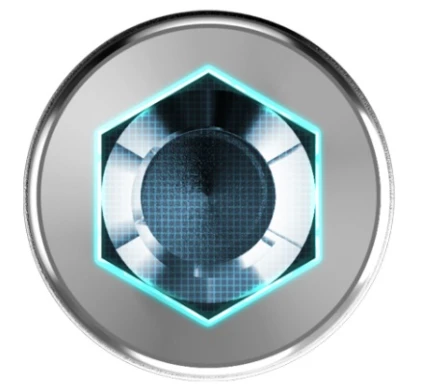

Platform to Abutment Connection: internal Hexagon. Hexagon Width 2.42mm.

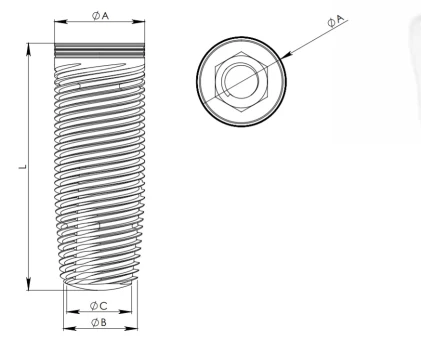

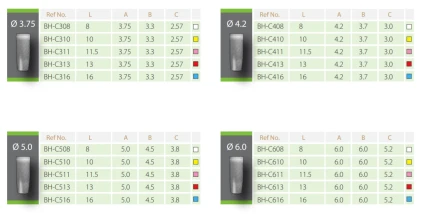

Sizes:
Implant Diameter: 3.75mm, 4.2mm, 5.0mm, 6.0mm.
Implant Length: 8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
