Abutment Connection
external
Abutment Connection Type
external hex
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
reverse buttress
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Shape
cone apex, flat apex
Implant Body Surface
SLA (Sand blast Large grit Acid etch)
Implant Material
titanium alloy grade 23 (Ti6Al4V-ELI)

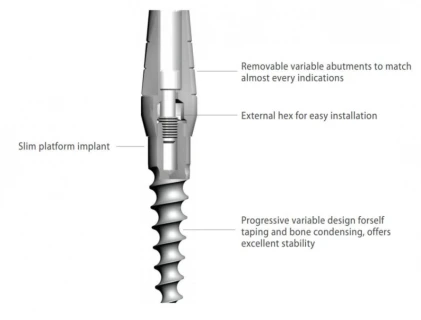

Platform to Abutment Connection: External Hexagon. Hexagon Width 2.7mm. Internal Thread 1-72.
Sizes:

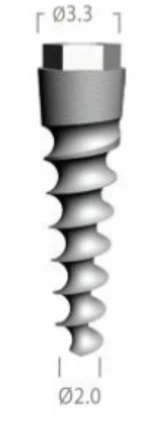

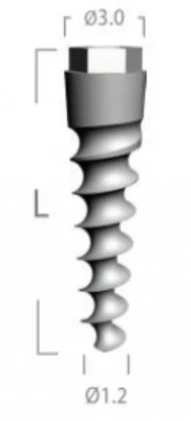

Implant Diameter: 3.0mm, 3.3mm.
Implant Length:10.0mm,11.5mm,13.0mm,16.0mm.
