Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal hex
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body, narrow, wider than body
Implant Cervical Features
polished surface, unpolished surface
Implant Apical Shape
flat apex
Implant Apical Features
grooved
Implant Body Surface
SLA (Sand blast Large grit Acid etch)
Implant Material
commercially pure titanium (grade 2), commercially pure titanium (grade 4), titanium alloy grade 23 (Ti6Al4V-ELI)
Implant Body Thread: Thread Pitch 0.6mm.
Platform to Abutment Connection: Internal Morse Taper and Internal Hexagon. Platform Diameter: 3.2mm. Internal Thread: 1.8mm.

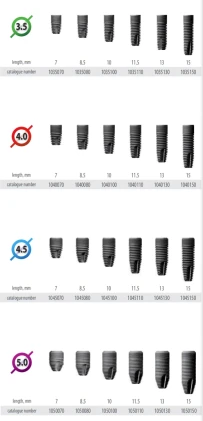

Sizes:

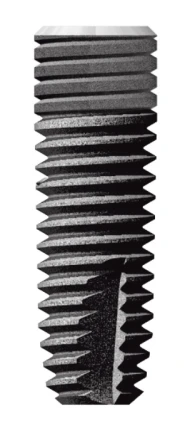

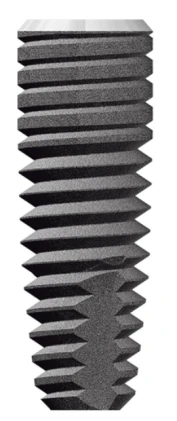

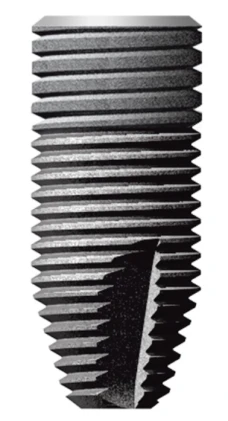

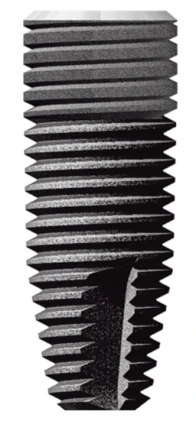

Implant Diameter: 3.5mm, 4.0mm, 4.5mm, 5.0mm.
Implant Length:7.0mm,8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
.
Implants with Compatible Platforms
