Stratego Cilindrico (3.8,4.8)

Stratego Cilindrico (3.8,4.8) - 1
Stratego Cilindrico (3.8,4.8) - 2
Stratego Cilindrico (3.8,4.8) - 3
Stratego Cilindrico (3.8,4.8) - 4
Stratego Cilindrico (3.8,4.8) - 5
Stratego Cilindrico (3.8,4.8) - 6
-
Manufacturer:
Country: Italy
Products: ImplaMed S.r.l.
Abutment Connection
internal
Abutment Connection Type
internal hex
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
wider than body, narrow
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
flat apex
Implant Material
commercially pure titanium (grade 4)
Implant Body Thread: Thread Pitch:0.6mm.

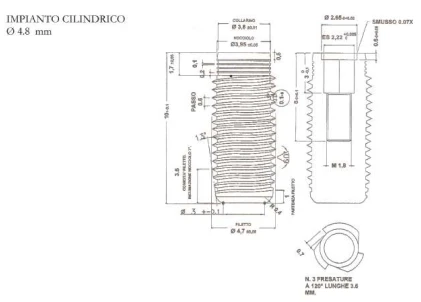

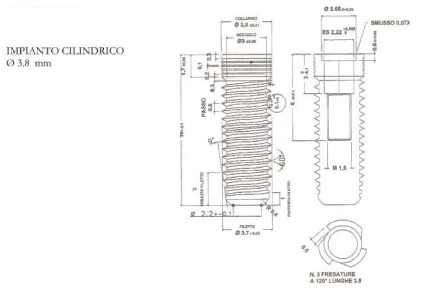

Platform to Abutment Connection: Internal Hexagon. Hexagon Diameter:2.22mm. Hexagon Depth:3.0mm. Bore Diameter:M1.8. Platform Diameter:3.8mm.
Sizes: Implant Diameter:3.8mm,4.8mm.
Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,15.0mm.
