Abutment Connection
internal
Abutment Connection Type
internal hex, internal morse taper
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
reverse buttress
Implant Cervical Shape
wider than body
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex, flat apex

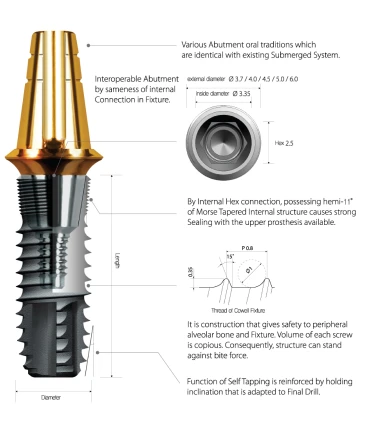

Platform to Abutment Connection: Internal Morse Taper. 11 degree. Taper Diameter-3.35mm.
Internal Hexagon Below Taper. Hexagon Width-2.5mm.
External Bevel.

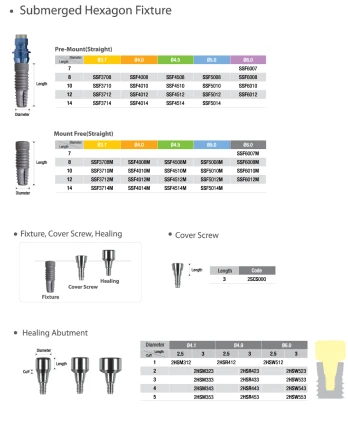

Sizes: Implant Diameter:3.7mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Implant Diameter:4.0mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Implant Diameter:4.5mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Implant Diameter:5.0mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Implant Diameter:6.0mm. Implant Length:8.0mm,10.0mm,12.0mm.
Internal Hexagon Below Taper. Hexagon Width-2.5mm.
External Bevel.
Sizes: Implant Diameter:3.7mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Implant Diameter:4.0mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Implant Diameter:4.5mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Implant Diameter:5.0mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Implant Diameter:6.0mm. Implant Length:8.0mm,10.0mm,12.0mm.
