Abutment Connection
internal
Abutment Connection Type
internal hex
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
reverse buttress
Implant Cervical Shape
narrow, straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Shape
domed apex
Implant Body Surface
SLA (Sand blast Large grit Acid etch)
Implant Material
commercially pure titanium (grade 4)

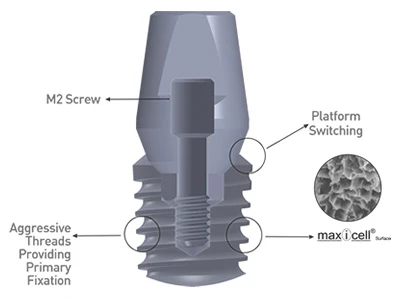

Platform to Abutment Connection: Internal Hexagon. Platform Diameter-5.8mm. Internal Thread-M2.0.

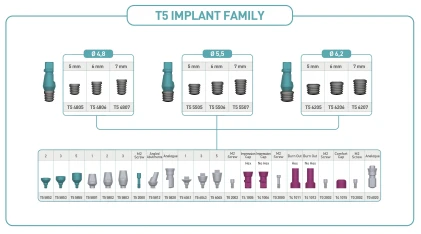

Sizes:
Implant Diameter:4.8mm.
Implant Length:5.0mm,6.0mm,7.0mm.
Implant Diameter:5.5mm.
Implant Length:5.0mm,6.0mm,7.0mm.
Implant Diameter:6.2mm.
Implant Length:5.0mm,6.0mm,7.0mm.
Sizes:
Implant Diameter:4.8mm.
Implant Length:5.0mm,6.0mm,7.0mm.
Implant Diameter:5.5mm.
Implant Length:5.0mm,6.0mm,7.0mm.
Implant Diameter:6.2mm.
Implant Length:5.0mm,6.0mm,7.0mm.
