Abutment Connection
internal

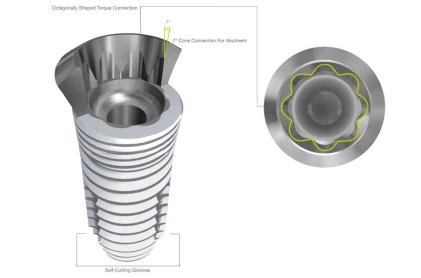

Abutment Connection Type
internal morse taper, internal eight lobe
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body, wider than body

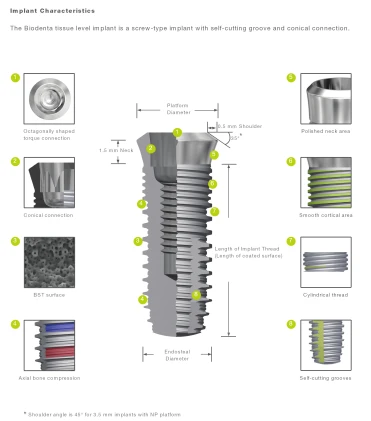

Implant Cervical Features
polished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Body Surface
TPO (Titanium Porous Oxide) anodic oxidation
Implant Material
commercially pure titanium (grade 4)
Implant Cervical Features: Polished, 1.5mm Height.
Implant Body Surface: BST (Galvanic Anodization Process).
Platform to Abutment Connection: Internal Morse Taper 7 Degrees and Internal Eight Lobe.
Platform Diameter: 3.7mm. (NP)

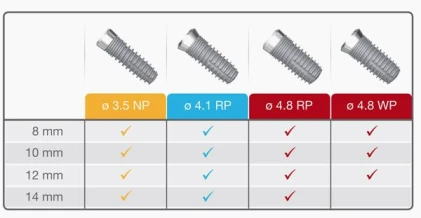

Sizes:
Implant Diameter:3.5mm.
Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Implant Body Surface: BST (Galvanic Anodization Process).
Platform to Abutment Connection: Internal Morse Taper 7 Degrees and Internal Eight Lobe.
Platform Diameter: 3.7mm. (NP)
Sizes:
Implant Diameter:3.5mm.
Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
