Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal hex
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Shape
domed apex
Implant Apical Features
grooved
Implant Body Surface
SLA (Sand blast Large grit Acid etch)
Implant Material
commercially pure titanium (grade 4)
Implant Cervical Features: platform switching.
Implant Body Thread: Double lead thread.

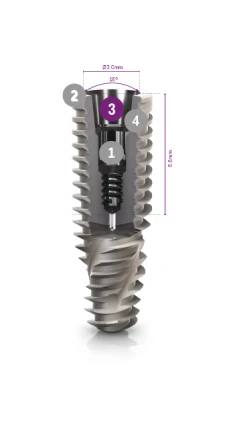

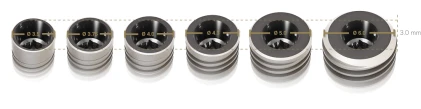

Platform to Abutment Connection: Internal morse taper 16 degrees with internal indexation. Socket diameter: 3.0mm. Internal bore: 1.6mm
Implant Body Shape: Cylinder
Sizes: Implant Diameter: 3.5mm, 3.75mm, 4.0mm, Implant Length: 7.0mm, 8.0mm, 9.0mm, 11.0mm, 13.0mm, 15.0mm, 17.0mm
Implant Diameter: 5.0mm. Implant Length: 7.0mm, 8.0mm, 9.0mm, 11.0mm, 13.0mm.
Implants with Compatible Platforms
