Abutment Connection
external
Abutment Connection Type
external hex
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
buttress
Implant Cervical Shape
wider than body
Implant Cervical Features
polished surface
Implant Apical Shape
domed apex
Implant Apical Features
grooved
Implant Body Surface
acid etching
Implant Material
commercially pure titanium (grade 4)

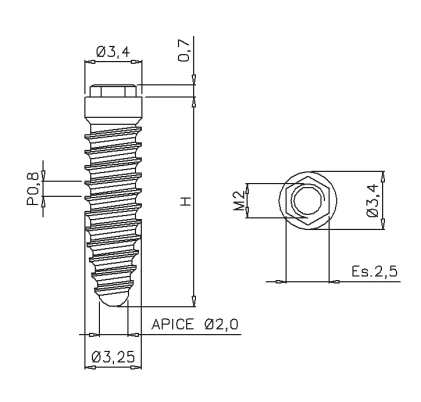

Implant Body Threads: Threads Pitch-0.8mm.
Implant to Abutment Connection: External Hexagon. Platform Diameter-3.4mm.
Hexagon Diameter-2.5mm. Hexagon Height-0.7mm. Bore Threads-M2.
Sizes:Implant Diameter 3.25mm. Implant Length: 10.0mm,11.5mm,13.0mm,15.0mm.
Implant to Abutment Connection: External Hexagon. Platform Diameter-3.4mm.
Hexagon Diameter-2.5mm. Hexagon Height-0.7mm. Bore Threads-M2.
Sizes:Implant Diameter 3.25mm. Implant Length: 10.0mm,11.5mm,13.0mm,15.0mm.
Implants with Compatible Platforms
