Abutment Connection
internal
Abutment Connection Type
internal three spline
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
narrow, straight transition from body
Implant Apical Features
oblong hole, grooved
Implant Apical Shape
domed apex
Implant Body Surface
sandblast, acid etching
Platform to Abutment Connection: Internal Three Spline. Platform Diameter-3.8mm.
Internal Thread-M1.6.

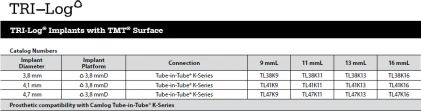

Sizes:
Implant Diameter:3.8mm. Implant Length:9.0mm,11.0mm,13.0mm,16.0mm.
Implant Diameter:4.1mm. Implant Length:9.0mm,11.0mm,13.0mm,16.0mm.
Implant Diameter:4.7mm. Implant Length:9.0mm,11.0mm,13.0mm,16.0mm.
Internal Thread-M1.6.
Sizes:
Implant Diameter:3.8mm. Implant Length:9.0mm,11.0mm,13.0mm,16.0mm.
Implant Diameter:4.1mm. Implant Length:9.0mm,11.0mm,13.0mm,16.0mm.
Implant Diameter:4.7mm. Implant Length:9.0mm,11.0mm,13.0mm,16.0mm.
Implants with Compatible Platforms
