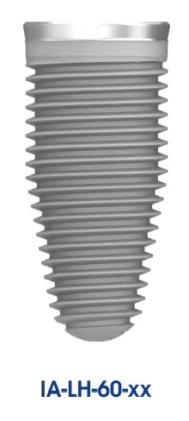

Tri-Nex IA-LH-60

Tri-Nex IA-LH-60 - 1
Tri-Nex IA-LH-60 - 2
Tri-Nex IA-LH-60 - 3
Tri-Nex IA-LH-60 - 4
Tri-Nex IA-LH-60 - 5
Tri-Nex IA-LH-60 - 6
Tri-Nex IA-LH-60 - 7
Tri-Nex IA-LH-60 - 8
-
Manufacturer:
Country: South Africa
Products: Southern Implants
Abutment Connection
internal
Abutment Connection Type
internal tri lobe
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
wider than body, straight transition from body
Implant Cervical Features
polished surface
Implant Apical Shape
domed apex
Implant Cervical Features: 0.8mm or 0.6mm Polished.
Platform to Abutment Connection: Internal Tri-lobe with Internal Hexagon Below the Tri-lobe for the Mount.
Platform with Beveled Edge.

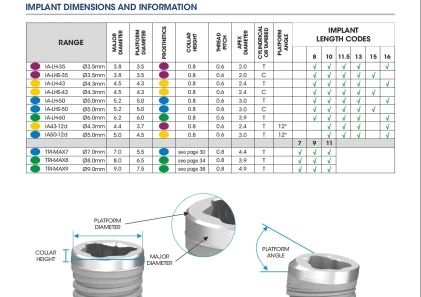

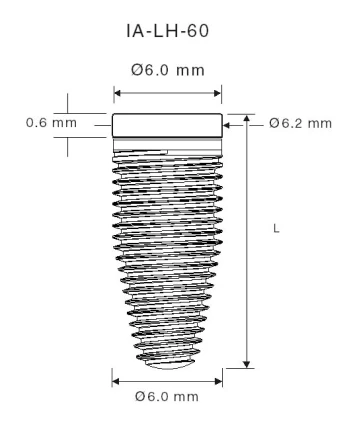

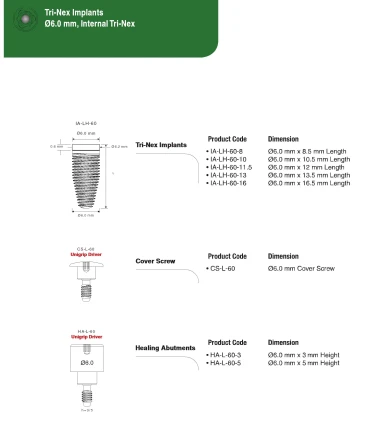

Sizes: Platform Diameter:6.0mm. Implant Diameter:6.2mm. Length:8.5mm,10.5mm,11.5mm,13.5mm,16.5mm.
