Abutment Connection
external
Abutment Connection Type
external morse taper, external triangle
Implant Body Shape
cylinder, tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
narrow
Implant Cervical Features
polished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Material
titanium alloy grade 23 (Ti6Al4V-ELI)

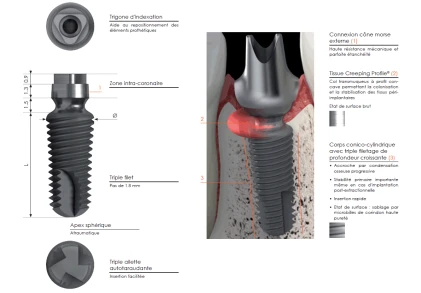

Implant Body Thread: Triple Thread.
Platform to Abutment Connection: External Morse Taper 5 deg. Morse Taper Height- 1.3mm. External Triangle. Triangle Height- 0.9mm.

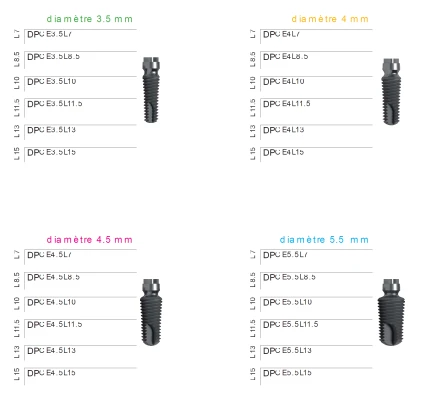

Sizes: Implant Diameter:3.5mm,4.0mm,4.5mm,5.5mm.
Implant Length:7.0mm,8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Platform to Abutment Connection: External Morse Taper 5 deg. Morse Taper Height- 1.3mm. External Triangle. Triangle Height- 0.9mm.
Sizes: Implant Diameter:3.5mm,4.0mm,4.5mm,5.5mm.
Implant Length:7.0mm,8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
