Abutment Connection
internal
Abutment Connection Type
internal octagon
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body
Implant Cervical Features
polished surface
Implant Apical Shape
cone apex
Implant Body Surface
acid etching
Implant Material
commercially pure titanium (grade 4)

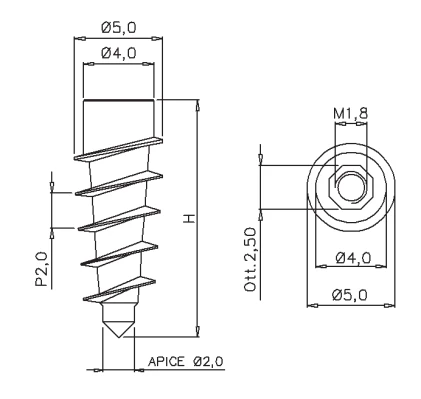

Implant Body Threads: Threads Pitch-2.0mm.
Implant to Abutment Connection: Internal Octagon. Platform Diameter 4.0mm.
Octagon Diameter 2.5mm. Bore Threads-M18.
Sizes:Implant Diameter 5.0mm. Implant Length: 10.0mm,11.5mm,13.5mm,15.5mm,17.5mm.
Implant to Abutment Connection: Internal Octagon. Platform Diameter 4.0mm.
Octagon Diameter 2.5mm. Bore Threads-M18.
Sizes:Implant Diameter 5.0mm. Implant Length: 10.0mm,11.5mm,13.5mm,15.5mm,17.5mm.
