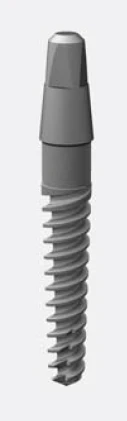

Abutment Connection
others
Abutment Connection Type
one piece (no connection)
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
reverse buttress
Implant Cervical Shape
straight transition from body, wider than body
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
cone apex
Implant Body Surface
sandblast, acid etching
Implant Material
titanium alloy grade 5 (Ti6Al4V)
Implant Apical Features: Grooves (2).
Implant Apical Shape: Cone Shape (120 deg.).
Implant Body Surface: Acid Etching- Top. Sand Blast+Acid Etching- Bottom.
Implant Body Thread: Thread Thickness-0.2mm. Double Thread, Pitch 2.0mm.
Platform to Abutment Connection: Square 2.1mm Width.
Implant Apical Shape: Cone Shape (120 deg.).
Implant Body Surface: Acid Etching- Top. Sand Blast+Acid Etching- Bottom.
Implant Body Thread: Thread Thickness-0.2mm. Double Thread, Pitch 2.0mm.
Platform to Abutment Connection: Square 2.1mm Width.
