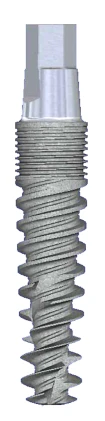

Abutment Connection
others
Abutment Connection Type
one piece (no connection)
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Shape
domed apex, cone apex
Implant Apical Features
grooved
Implant Body Surface
SBM (Soluble Blast Media), blasted with hydroxylapatite
Implant Material
titanium alloy grade 23 (Ti6Al4V-ELI)
Implant Cervical Features: Horizontal Grooves. Micro Threads.
Implant Body Thread: Double Thread.
Implant Apical Shape: For Implants Diameter 2.9mm, 3.3mm- Cone Shape.
For Implants Diameter 3.75mm, 4.2mm,4.7mm- Dome Shape.
Sizes:
Implant Diameter:2.9mm.
Implant Length:10.0mm,11.5mm,13.0mm,16.0mm.

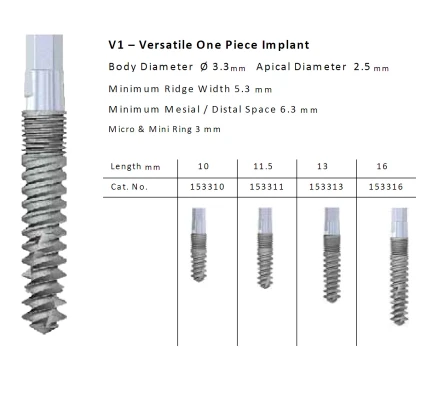

Implant Diameter:3.3mm.
Implant Length:10.0mm,11.5mm,13.0mm,16.0mm.

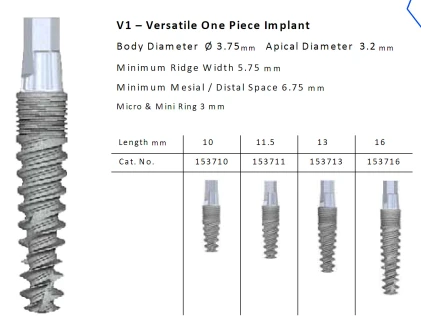

Implant Diameter:3.75mm.
Implant Length:10.0mm,11.5mm,13.0mm,16.0mm.

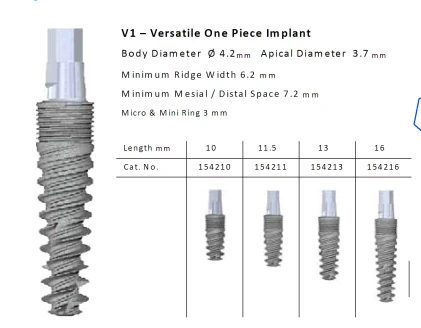

Implant Diameter:4.2mm.
Implant Length:10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:4.7mm.
Implant Length:10.0mm,11.5mm,13.0mm,16.0mm.
Implant Body Thread: Double Thread.
Implant Apical Shape: For Implants Diameter 2.9mm, 3.3mm- Cone Shape.
For Implants Diameter 3.75mm, 4.2mm,4.7mm- Dome Shape.
Sizes:
Implant Diameter:2.9mm.
Implant Length:10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:3.3mm.
Implant Length:10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:3.75mm.
Implant Length:10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:4.2mm.
Implant Length:10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:4.7mm.
Implant Length:10.0mm,11.5mm,13.0mm,16.0mm.
