Abutment Connection
internal
Abutment Connection Type
internal hex
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
cone apex
Implant Body Surface
blasted with hydroxylapatite, SBM (Soluble Blast Media)
Implant Material
titanium alloy grade 23 (Ti6Al4V-ELI)
Implant Cervical Features: Horizontal Grooves. Micro Threads.
Implant Body Thread: Double Thread.

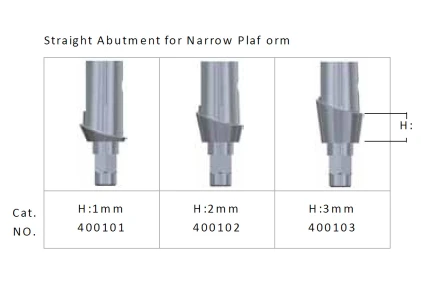

Platform to Abutment Connection: Internal Hexagon. Platform Diameter 3.0mm.
Internal Thread M1.4.
Sizes:

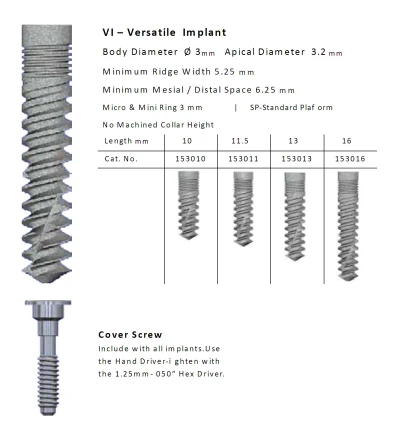

Implant Diameter:3.0mm.
Implant Length:10.0mm,11.5mm,13.0mm,16.0mm.

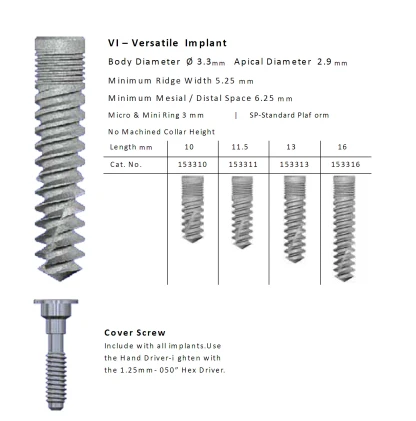

Implant Diameter:3.3mm.
Implant Length:10.0mm,11.5mm,13.0mm,16.0mm.
Implant Body Thread: Double Thread.
Platform to Abutment Connection: Internal Hexagon. Platform Diameter 3.0mm.
Internal Thread M1.4.
Sizes:
Implant Diameter:3.0mm.
Implant Length:10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:3.3mm.
Implant Length:10.0mm,11.5mm,13.0mm,16.0mm.
