Abutment Connection
internal
Abutment Connection Type
internal hex
Implant Body Shape
tapered, cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
wider than body, straight transition from body
Implant Cervical Features
polished surface
Implant Apical Features
grooved
Implant Apical Shape
flat apex
Implant Body Surface
glow discharge, acid etching, sandblast

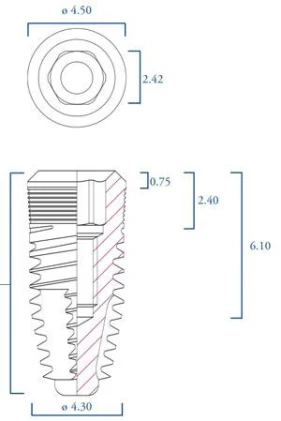

Implant Material: medical grade titanium.
Implant Cervical Features: 0.75mm Height Polished.
Implant Body Thread: Double Thread.
Implant to Abutment Connection: Internal Hexagon With Round Angles. Hexagon Diameter 2.42mm.
External Bevel. Platform Diameter 4.5mm.
Sizes:Implant Diameter:4.5mm.
Implant Length:10.0mm,11.5mm,13.0mm,15.0mm.
Implant Cervical Features: 0.75mm Height Polished.
Implant Body Thread: Double Thread.
Implant to Abutment Connection: Internal Hexagon With Round Angles. Hexagon Diameter 2.42mm.
External Bevel. Platform Diameter 4.5mm.
Sizes:Implant Diameter:4.5mm.
Implant Length:10.0mm,11.5mm,13.0mm,15.0mm.
Implants with Compatible Platforms
