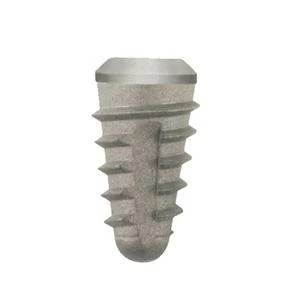

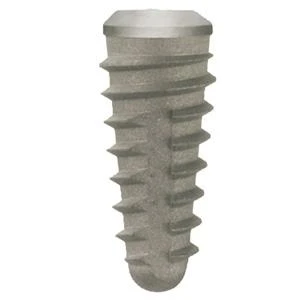

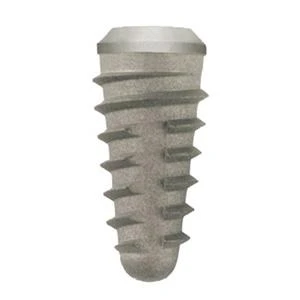

Conical Extra Large

-
Manufacturer:
Country: Italy
Products: TFI System Srl
Abutment Connection
internal
Abutment Connection Type
internal hex
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
narrow
Implant Cervical Features
polished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Body Surface
sandblast, acid etching, glow discharge

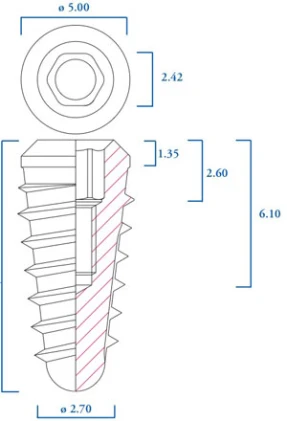

Implant Material: medical grade titanium.
Implant Cervical Features: 1.35mm Height Polished.
Implant to Abutment Connection: Internal Hexagon With Round Angles.
Hexagon Diameter 2.42mm. Hexagon Depth 2.6mm.
Internal Conical Seating 45 Deg. External Bevel. Platform Diameter 5.0mm.
Sizes:Implant Diameter 5.5mm. Implant Length: 10.0mm,11.5mm,13.0mm.
