Abutment Connection
internal
Abutment Connection Type
internal hex
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body
Implant Cervical Features
polished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Body Surface
sandblast, acid etching, glow discharge
Implant Material: medical grade titanium.
Implant Cervical Features: 1.0mm Height Polished.

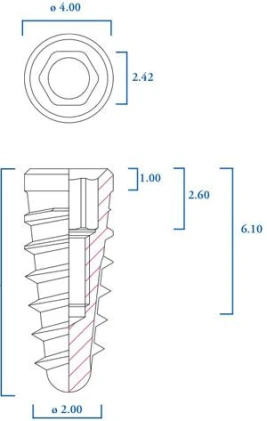

Implant to Abutment Connection: Internal Hexagon With Round angles.
Hexagon Diameter 2.42mm. Hexagon Depth 2.6mm.
Internal Conical Seating 45 Deg. Platform Diameter 4.0mm.
Sizes:Implant Diameter:3.75mm. Implant Length:10.0mm,11.5mm,13.0mm.
Implant Cervical Features: 1.0mm Height Polished.
Implant to Abutment Connection: Internal Hexagon With Round angles.
Hexagon Diameter 2.42mm. Hexagon Depth 2.6mm.
Internal Conical Seating 45 Deg. Platform Diameter 4.0mm.
Sizes:Implant Diameter:3.75mm. Implant Length:10.0mm,11.5mm,13.0mm.
