Abutment Connection
internal
Abutment Connection Type
internal hex
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
wider than body
Implant Cervical Features
polished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Body Surface
TPS (Titanium Plasma Sprayed)
Implant Material: Medical grade titanium.
Implant Cervical Features: 1.0mm height Polished.

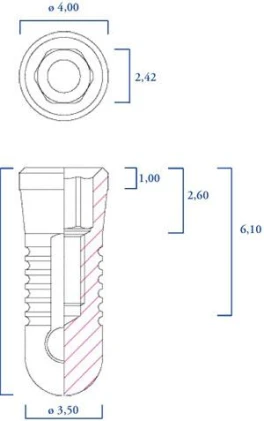

Implant to Abutment Connection: Internal Hexagon. Hexagon Diameter 2.42mm. Hexagon Depth 2.6mm.
Internal Conical Seating 45 Deg. Platform Diameter 4.0mm.

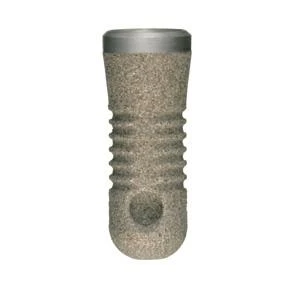

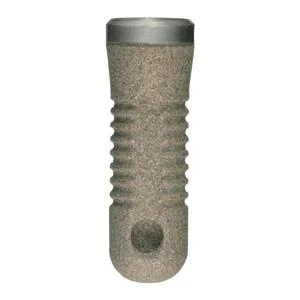

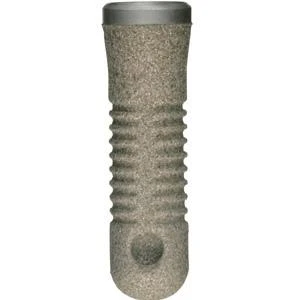

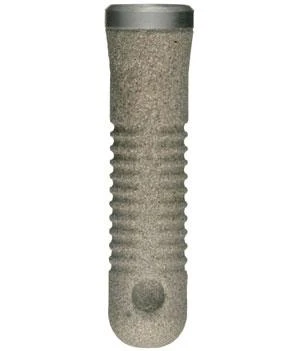

Sizes:Implant Diameter 3.5mm. Implant Length: 10.0mm,11.5mm,13.0mm,15.0mm.
Implant Cervical Features: 1.0mm height Polished.
Implant to Abutment Connection: Internal Hexagon. Hexagon Diameter 2.42mm. Hexagon Depth 2.6mm.
Internal Conical Seating 45 Deg. Platform Diameter 4.0mm.
Sizes:Implant Diameter 3.5mm. Implant Length: 10.0mm,11.5mm,13.0mm,15.0mm.
Implants with Compatible Platforms
