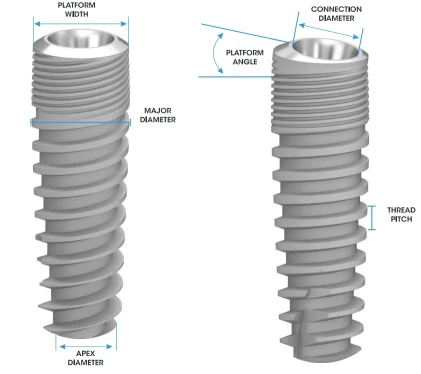

Deep Conical Co-Axis Tapered 4.0mm DCT40-12D

-
Manufacturer:
Country: South Africa
Products: Southern Implants
Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal hex, internal dodecagon
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped, square
Implant Cervical Shape
angled
Implant Cervical Features
polished surface, unpolished surface
Implant Apical Shape
domed apex
Implant Apical Features
grooved
Implant Body Surface
Blast with Alumina particles (Al203)

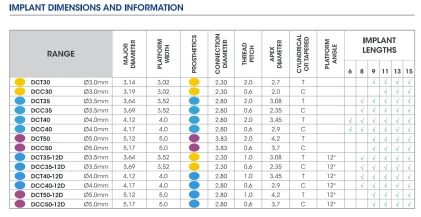

Platform to Abutment Connection: Internal Morse Taper 11 degrees, Bellow it Internal Double Hexagon. Connection Diameter 2.80mm. Internal Thread 1.6mm.

Implant Cervical Shape: Angled 12 degrees

Platform Width: 4.0mm

Sizes:

Implant Diameter: 4.0mm.

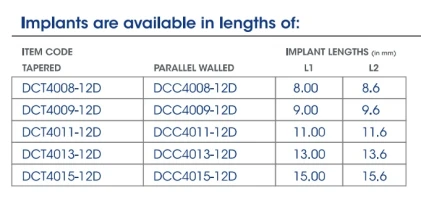

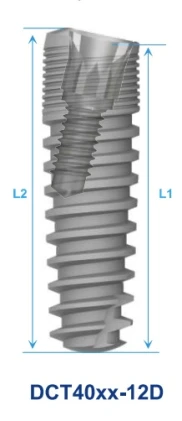

Implant Length:8.0mm,9.0mm,11.0mm,13.0mm,15.0mm.
