Deep Conical INVERTA Straight 3.5mm-4.5mm

-
Manufacturer:
Country: South Africa
Products: Southern Implants
Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal hex, internal dodecagon
Implant Body Shape
tapered, cylinder
Implant Body Features
threaded
Implant Body Thread
square, V-shaped
Implant Cervical Shape
narrow
Implant Cervical Features
polished surface
Implant Apical Shape
domed apex
Implant Apical Features
grooved
Implant Body Surface
Blast with Alumina particles (Al203)

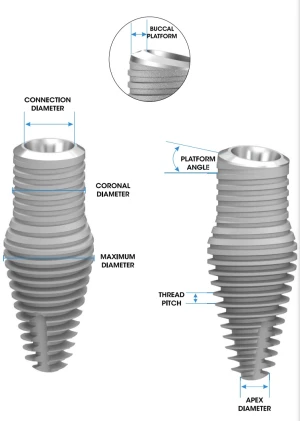

Body Shift Design

Platform to Abutment Connection: Internal Morse Taper 11 degrees, Bellow it Internal Double Hexagon. Connection Diameter 2.80mm. Internal Thread 1.6mm.

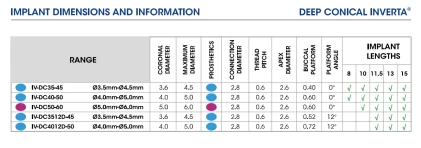

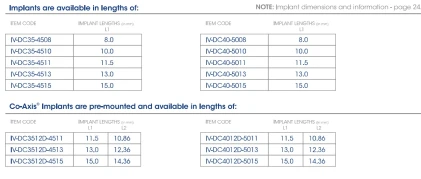

Sizes:

Implant Diameter: 4.5mm.

Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,15.0mm.
