Abutment Connection
internal
Abutment Connection Type
internal octagon, internal morse taper
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
reverse buttress
Implant Cervical Shape
wider than body
Implant Cervical Features
polished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Body Surface
acid etching, sandblast
Implant Material
commercially pure titanium (grade 4)

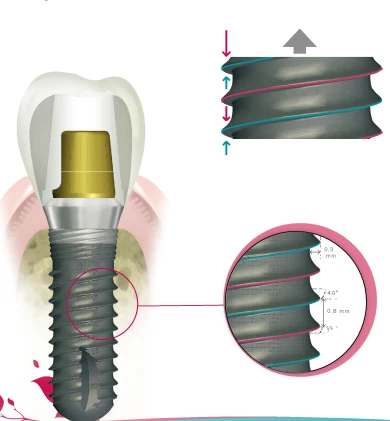

Implant Body Thread: Thread Pitch 0.8mm.
Implant Cervical Features: Polished 2.8mm Height. Cervical Micro-thread.
Platform to Abutment Connection: Internal Morse Taper 8 deg. Internal Octagon. External Bevel.
Platform Diameter 6.5mm.
Sizes: Implant Diameter:4.8mm.
Implant Length:6.0mm,8.0mm,10.0mm,12.0mm,14.0mm.
Implant Cervical Features: Polished 2.8mm Height. Cervical Micro-thread.
Platform to Abutment Connection: Internal Morse Taper 8 deg. Internal Octagon. External Bevel.
Platform Diameter 6.5mm.
Sizes: Implant Diameter:4.8mm.
Implant Length:6.0mm,8.0mm,10.0mm,12.0mm,14.0mm.
