Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal octagon

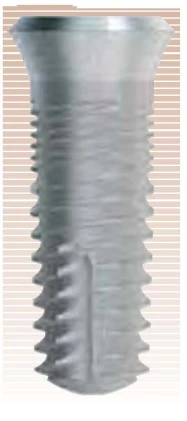

Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
reverse buttress
Implant Cervical Shape
wider than body
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Body Surface
SBM (Soluble Blast Media)
Implant Material
titanium alloy grade 23 (Ti6Al4V-ELI)
Implant Cervical Features: Micro-Thread.
Implant Body Thread: Double Lead Threads.

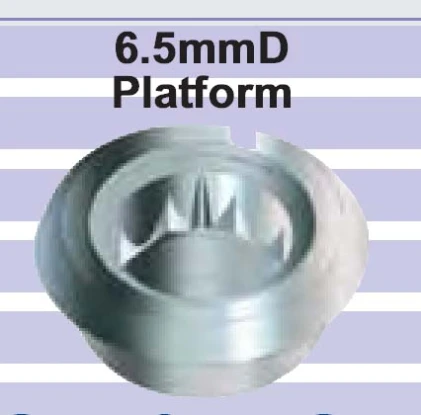

Platform to Abutment Connection: Internal Morse Taper 8 deg. Internal Octagon. Octagon Length-1.4mm. External Bevel. Internal Square for Engagement the Mount.

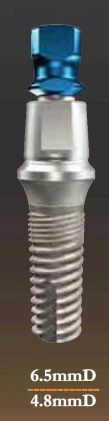

Platform Diameter: 6.5mm.

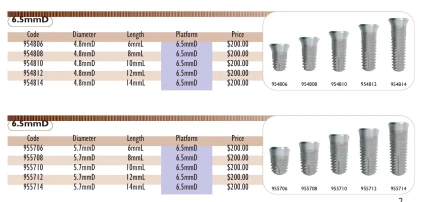

Sizes: Implant Diameter:4.8mm. Implant Length:6.0mm,8.0mm,10.0mm,12.0mm,14.0mm.
Implant Diameter:5.7mm. Implant Length:6.0mm,8.0mm,10.0mm,12.0mm,14.0mm.
Implant Body Thread: Double Lead Threads.
Platform to Abutment Connection: Internal Morse Taper 8 deg. Internal Octagon. Octagon Length-1.4mm. External Bevel. Internal Square for Engagement the Mount.
Platform Diameter: 6.5mm.
Sizes: Implant Diameter:4.8mm. Implant Length:6.0mm,8.0mm,10.0mm,12.0mm,14.0mm.
Implant Diameter:5.7mm. Implant Length:6.0mm,8.0mm,10.0mm,12.0mm,14.0mm.
Implants with Compatible Platforms
Titan implants INC.
