Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal hex

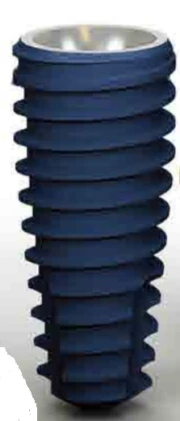

Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
narrow, straight transition from body
Implant Cervical Features
polished surface, unpolished surface
Implant Apical Shape
flat apex
Implant Apical Features
grooved
Implant Body Surface
SLA Ca layer
Implant Material
commercially pure titanium (grade 4)

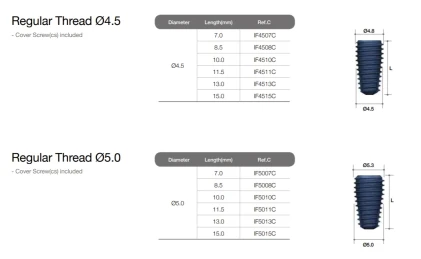

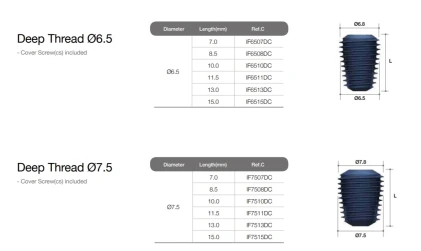

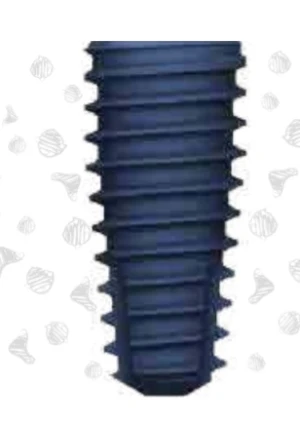

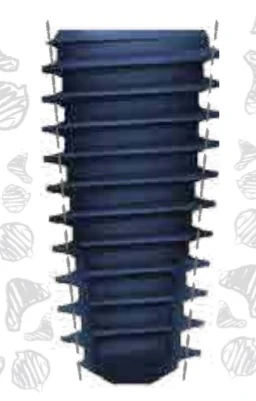

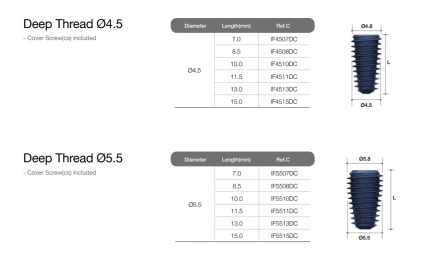

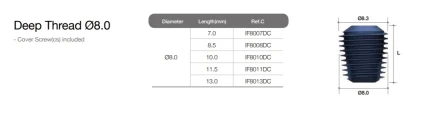

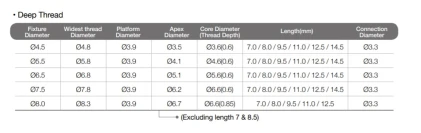

Implant Body Threads: Two thread options- Regular thread and Deep thread.

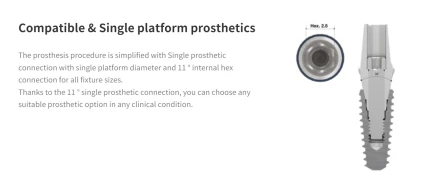

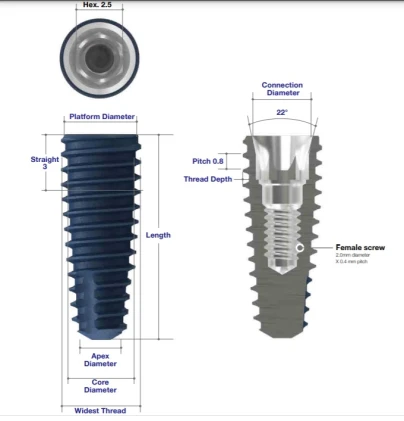

Platform to Abutment Connection: Internal Morse Taper 11 deg.
Internal Hexagon Width-2.5mm. Internal Thread- M2.0x0.4mm pitch. Connection Diameter: 3.3mm.

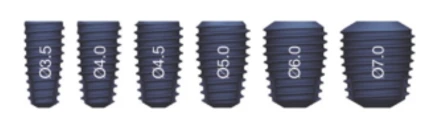

Sizes:

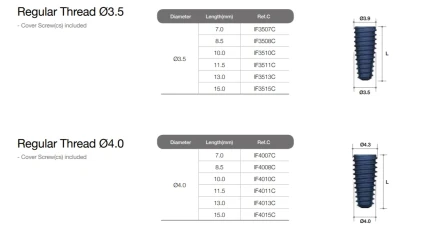

Implant Diameter: 3.5mm, 4.0mm, 4.5mm, 5.0mm.
Implant Length:7.0mm,8.0mm,9.5mm,11.0mm,12.5mm,14.5mm.

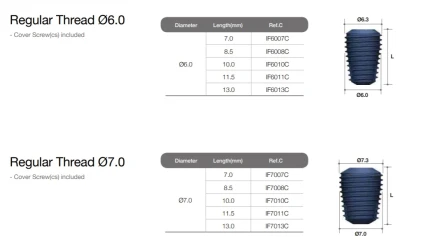

Implant Diameter: 6.0mm, 7.0mm.
Implant Length:7.0mm,8.0mm,9.5mm,11.0mm,12.5mm.
Implants with Compatible Platforms
