Abutment Connection
internal
Abutment Connection Type
internal hex, internal morse taper

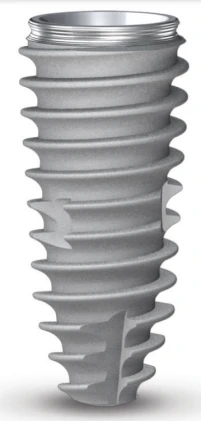

Implant Body Shape
cylinder, tapered

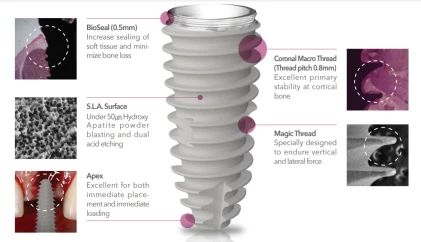

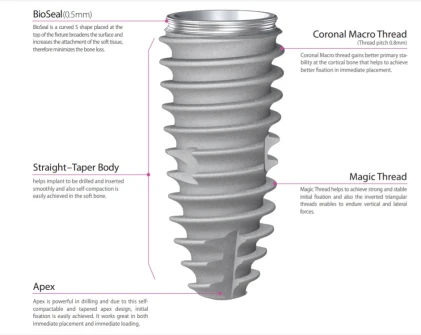

Implant Body Features
threaded
Implant Body Thread
buttress
Implant Cervical Shape
straight transition from body
Implant Cervical Features
polished surface
Implant Apical Shape
domed apex
Implant Apical Features
grooved
Implant Body Surface
SLA (Sand blast Large grit Acid etch), blasted with hydroxylapatite

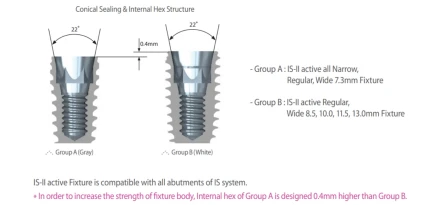

Platform to Abutment Connection: Internal Morse Taper 11 deg.
Internal Hexagon Width-2.5mm.

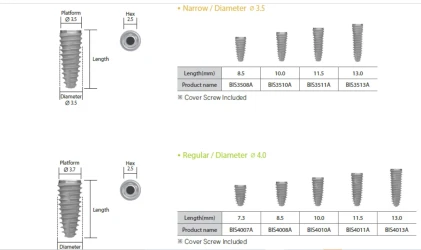

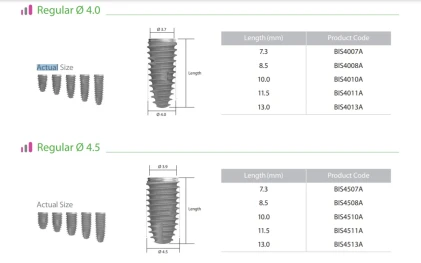

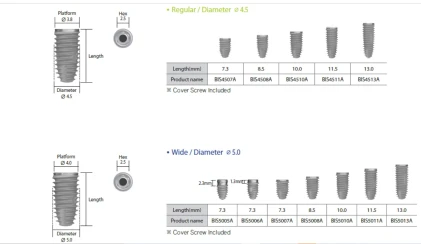

Sizes:

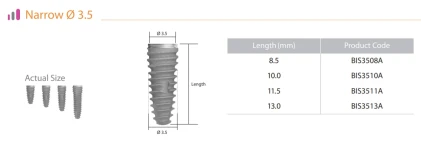

Implant Diameter: 3.5mm.
Implant Length:8.5mm,10.0mm,11.5mm,13.0mm.

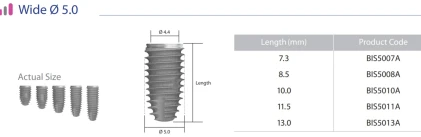

Implant Diameter: 4.0mm, 4.5mm, 5.0mm.
Implant Length:7.3mm,8.5mm,10.0mm,11.5mm,13.0mm.
