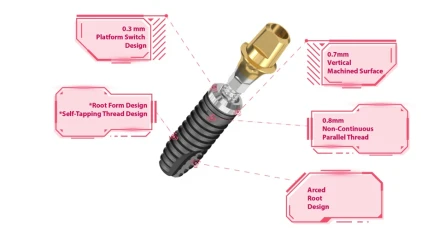

Biomate Plus SD (2.0 internal hex)

Biomate Plus SD (2.0 internal hex) - 1
Biomate Plus SD (2.0 internal hex) - 2
Biomate Plus SD (2.0 internal hex) - 3
Biomate Plus SD (2.0 internal hex) - 4
Biomate Plus SD (2.0 internal hex) - 5
Biomate Plus SD (2.0 internal hex) - 6
Biomate Plus SD (2.0 internal hex) - 7
Biomate Plus SD (2.0 internal hex) - 8
Biomate Plus SD (2.0 internal hex) - 9
-
Manufacturer:
Country: Switzerland
Products: Biomate SWISS GmbH
Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal hex

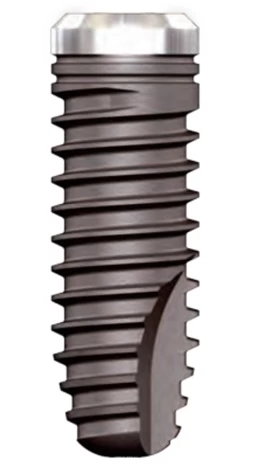

Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
narrow, straight transition from body
Implant Cervical Features
polished surface
Implant Apical Shape
domed apex
Implant Apical Features
grooved
Implant Body Surface
laser treatment

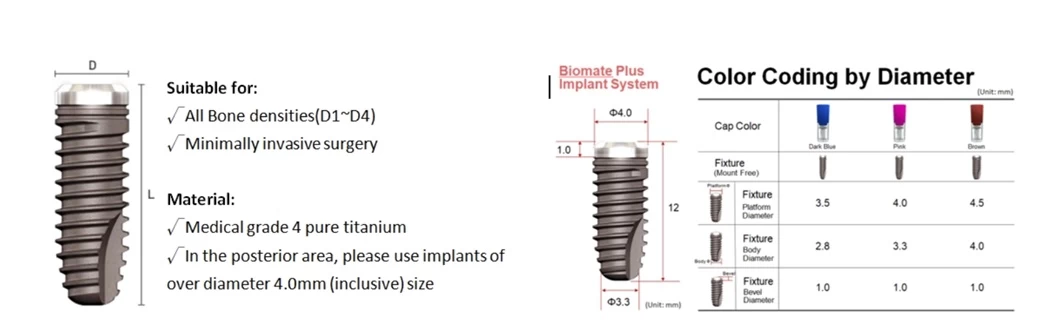

Implant Material
commercially pure titanium (grade 4)

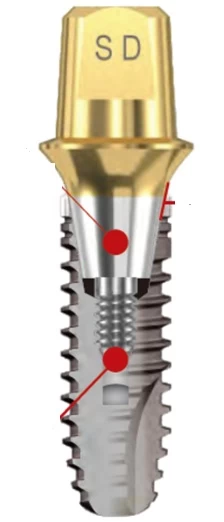

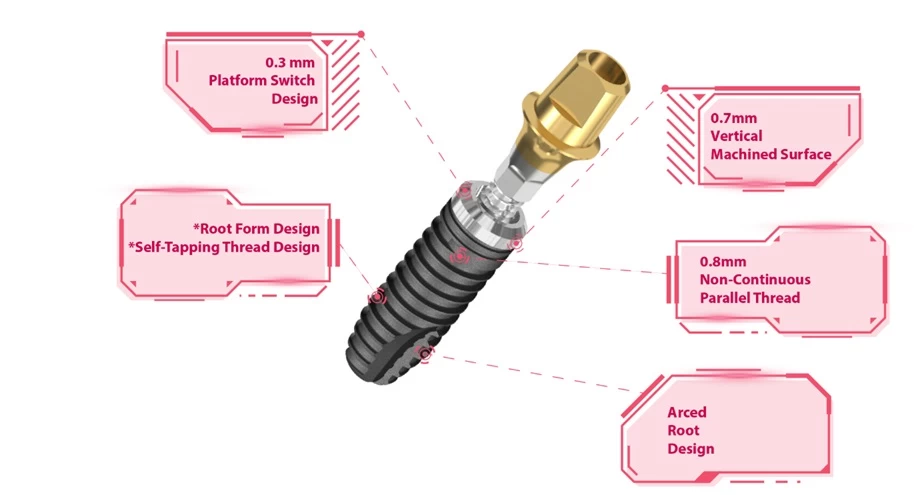

Implant Cervical Features: 1.0mm smooth surface.

Implant Body Threads: Trapezoid

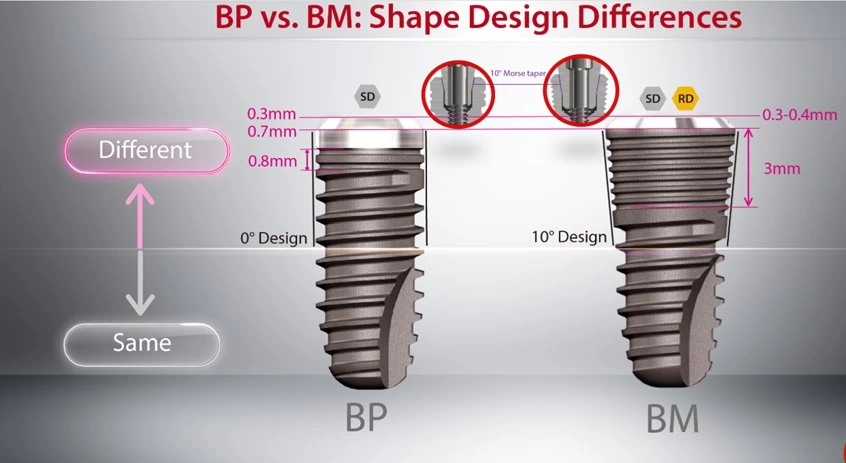

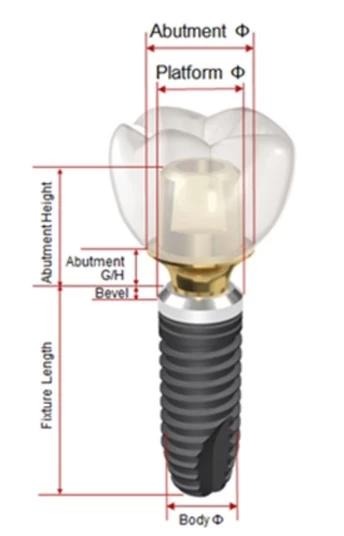

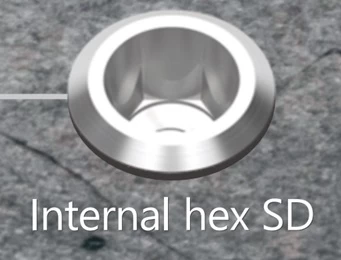

Platform to Abutment Connection: Internal Morse Taper 10 deg.
Internal Hexagon Width-2.0mm. Internal Thread- M1.6

Sizes:

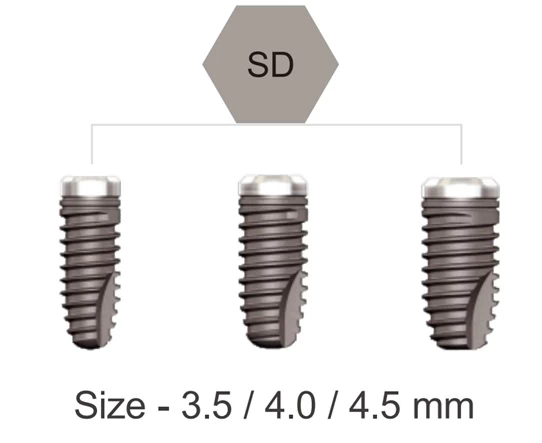

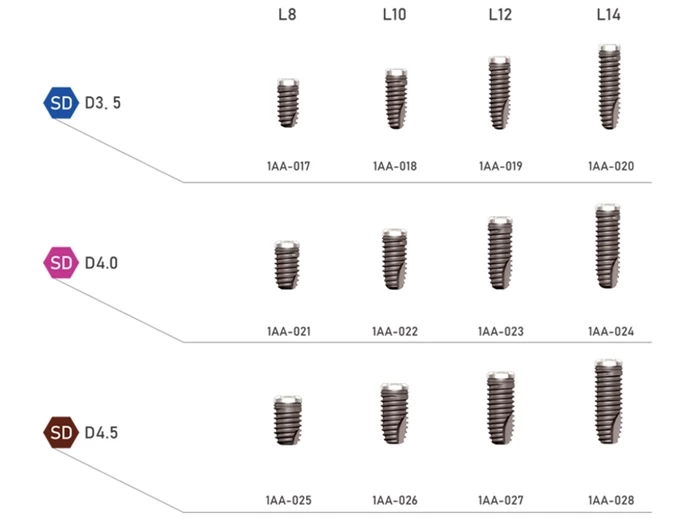

Implant Diameter: 3.5mm, 4.0mm, 4.5mm.
Implant Length:8.0mm,10.0mm,12.0mm,14.0mm
