Abutment Connection
internal
Abutment Connection Type
internal hex, internal morse taper
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
narrow, straight transition from body, wider than body
Implant Cervical Features
polished surface
Implant Apical Shape
domed apex
Implant Apical Features
grooved
Implant Body Surface
laser treatment
Implant Material
commercially pure titanium (grade 4)

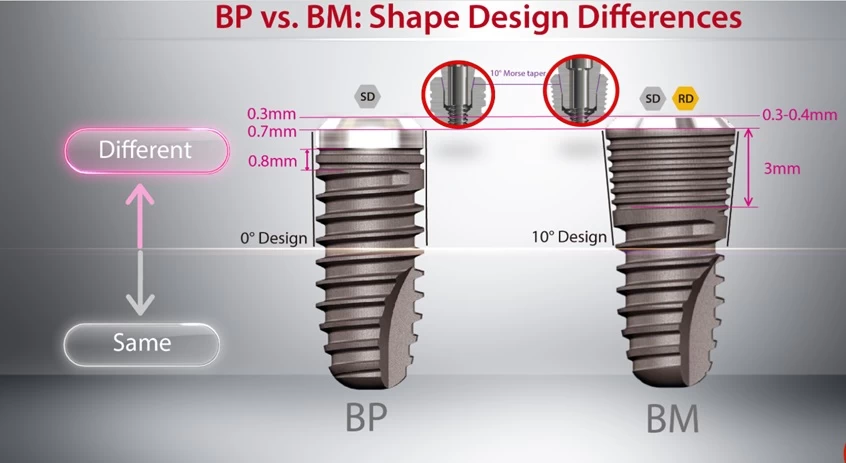

Implant Cervical Features: 0.3-0.4mm smooth surface.
Implant Body Threads: Trapezoid

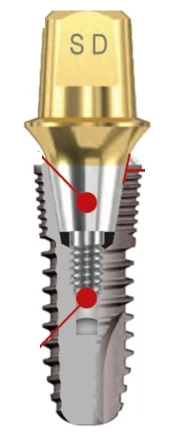

Platform to Abutment Connection: Internal Morse Taper 10 deg.

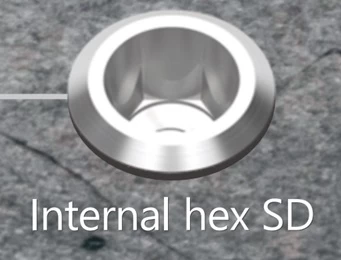

Internal Hexagon Width-2.0mm. Internal Thread- M1.6

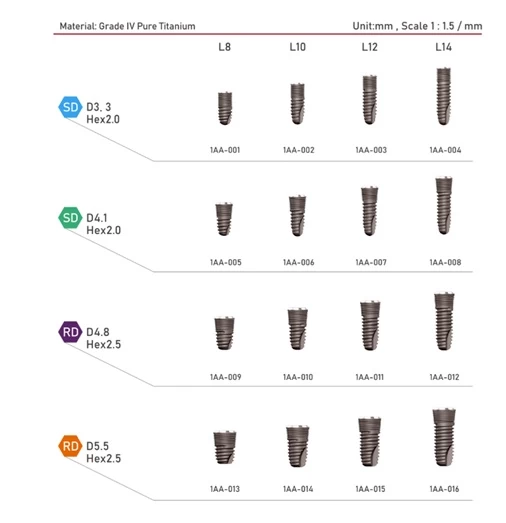

Sizes:
Implant Diameter: 3.3mm, 4.1mm
Implant Length:8.0mm,10.0mm,12.0mm,14.0mm
Implants with Compatible Platforms
