Abutment Connection
internal
Abutment Connection Type
internal six spline, internal morse taper
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
reverse buttress
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Shape
domed apex
Implant Apical Features
grooved
Implant Platform Color
purple
Implant Body Surface
acid etching, sandblast
Implant Material
titanium alloy grade 23 (Ti6Al4V-ELI)
Implant Body Thread: Double Thread.
Implant to Abutment Connection: Internal Taper-Socket Diameter 3.13mm. Six Spline Bellow Taper.
Sizes:
Implant Diameter:3.75mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:4.2mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant to Abutment Connection: Internal Taper-Socket Diameter 3.13mm. Six Spline Bellow Taper.
Sizes:

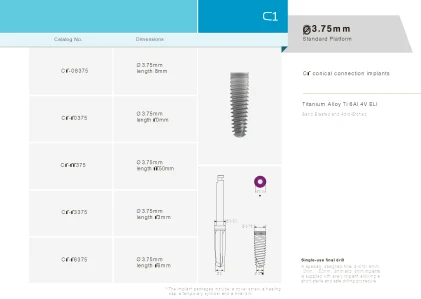

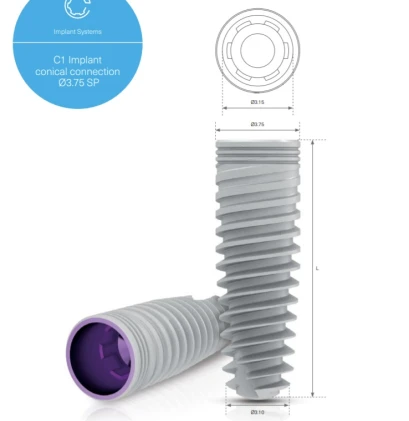

Implant Diameter:3.75mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.

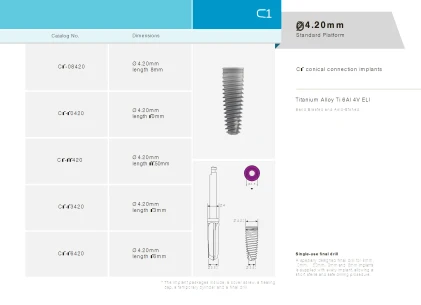

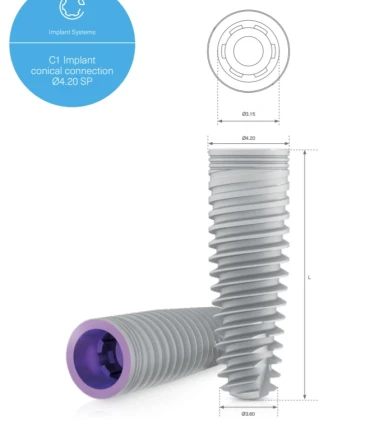

Implant Diameter:4.2mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implants with Compatible Platforms
