Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal six spline
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
reverse buttress
Implant Cervical Shape
straight transition from body, triangular shaped
Implant Cervical Features
unpolished surface
Implant Apical Shape
flat apex
Implant Apical Features
grooved
Implant Platform Color
purple
Implant Body Surface
acid etching, sandblast
Implant Material
titanium alloy grade 23 (Ti6Al4V-ELI)

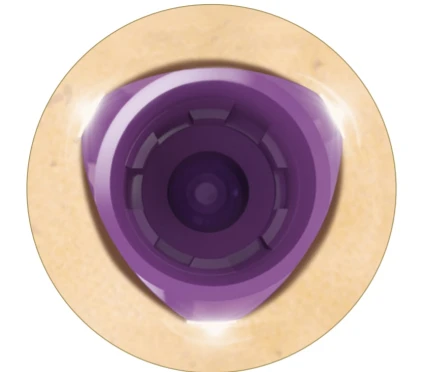

Implant Cervical Shape: Triangular Shaped Neck.

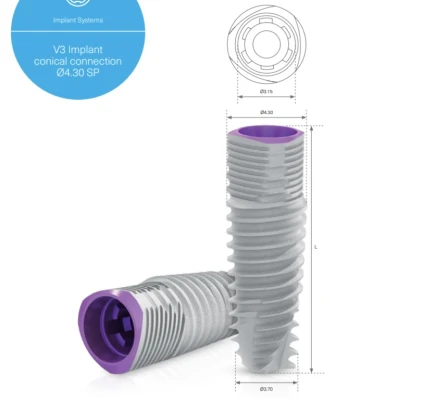

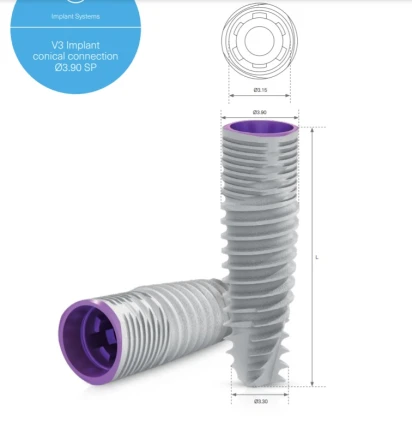

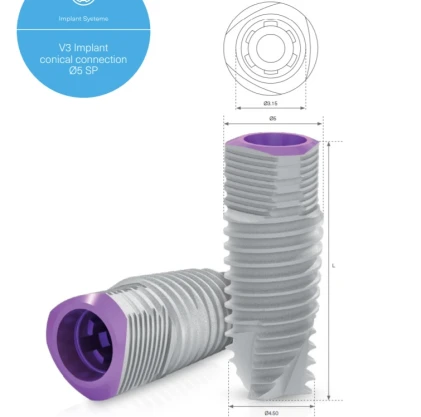

Implant to Abutment Connection: Internal Morse Taper 12 deg. Socket Diameter 3.15mm. Six Spline Bellow Taper.

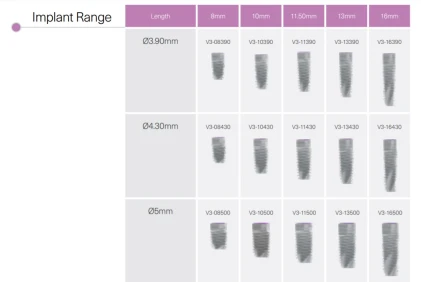

Sizes:

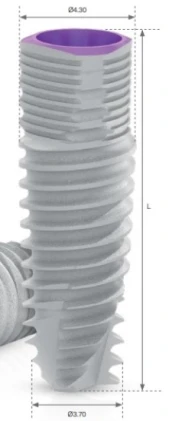

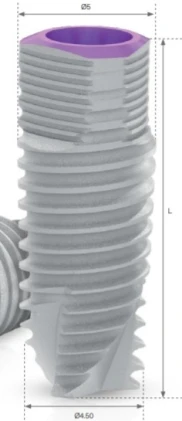

Implant Diameter: 3.9mm, 4.3mm, 5.0mm.
Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
