Abutment Connection
internal
Abutment Connection Type
internal hex
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body, wider than body, narrow
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
flat apex
Implant Body Surface
acid etching, sandblast
Implant Material
titanium alloy grade 5 (Ti6Al4V)
Implant Body Thread: Double Thread 2X1.2mm Pitch.
Platform to Abutment Connection: Internal Hexagon. Hexagon Width-2.43mm. Platform Diameter-3.75mm.
Internal Thread-I72 UNF.

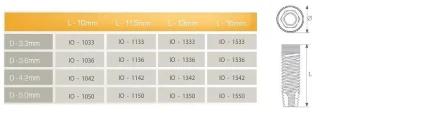

Sizes:
Implant Diameter:3.3mm. Implant Length:10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:3.6mm. Implant Length:10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:4.2mm. Implant Length:10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:5.0mm. Implant Length:10.0mm,11.5mm,13.0mm,16.0mm.
Platform to Abutment Connection: Internal Hexagon. Hexagon Width-2.43mm. Platform Diameter-3.75mm.
Internal Thread-I72 UNF.
Sizes:
Implant Diameter:3.3mm. Implant Length:10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:3.6mm. Implant Length:10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:4.2mm. Implant Length:10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:5.0mm. Implant Length:10.0mm,11.5mm,13.0mm,16.0mm.
Implants with Compatible Platforms
