Abutment Connection
internal
Abutment Connection Type
internal hex
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body, narrow
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
flat apex
Implant Body Surface
sandblast, acid etching
Implant Material
titanium alloy grade 5 (Ti6Al4V)

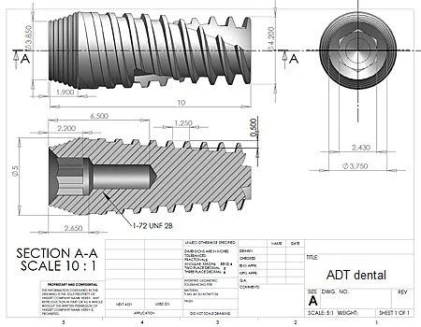

Platform to Abutment Connection: Internal Hexagon. Hexagon Width-2.43mm. Platform Diameter-3.75mm.
Internal Thread-I72 UNF.

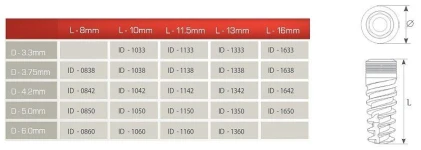

Sizes:
Implant Diameter:3.3mm. Implant Length:10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:3.75mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:4.2mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:5.0mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:6.0mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm.
Internal Thread-I72 UNF.
Sizes:
Implant Diameter:3.3mm. Implant Length:10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:3.75mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:4.2mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:5.0mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter:6.0mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm.
Implants with Compatible Platforms
