Abutment Connection
internal
Abutment Connection Type
internal morse taper
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
reverse buttress
Implant Cervical Shape
narrow
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
flat apex
Implant Body Surface
SLA+CaP coating
Implant Material
titanium alloy grade 23 (Ti6Al4V-ELI)
Implant Body Surface: SLA and calcium phosphate coating.
Platform to Abutment Connection: Locking Taper 1.5 deg. no anti-rotation. no screw. no bore.
Well Diameter: 3.0mm.
Implant Cervical Shape: Sloping Shoulder.
Implant Body Threads: Plateau (fin).

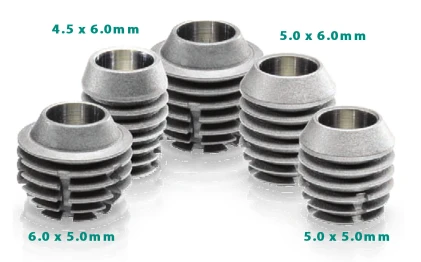

Sizes:Implant Diameter:4.5mm. Implant Length:6.0mm,8.0mm,11.0mm.
Implant Diameter:5.0mm. Implant Length:5.0mm,6.0mm,8.0mm,11.0mm.
Implant Diameter:6.0mm. Implant Length:5.0mm,5.7mm,8.0mm.
Platform to Abutment Connection: Locking Taper 1.5 deg. no anti-rotation. no screw. no bore.
Well Diameter: 3.0mm.
Implant Cervical Shape: Sloping Shoulder.
Implant Body Threads: Plateau (fin).
Sizes:Implant Diameter:4.5mm. Implant Length:6.0mm,8.0mm,11.0mm.
Implant Diameter:5.0mm. Implant Length:5.0mm,6.0mm,8.0mm,11.0mm.
Implant Diameter:6.0mm. Implant Length:5.0mm,5.7mm,8.0mm.
Implants with Compatible Platforms
