Abutment Connection
internal
Abutment Connection Type
internal morse taper
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
square
Implant Cervical Shape
narrow
Implant Cervical Features
unpolished surface, polished surface
Implant Apical Features
grooved
Implant Apical Shape
flat apex
Implant Body Surface
TPS (Titanium Plasma Sprayed), RBM(Resorbable Blast Media), HA (hydroxyapatite)
Platform to Abutment Connection: Locking Taper 1.5 deg. No Anti-rotation. No Screw. No Bore.
Well Diameter: 3.0mm.

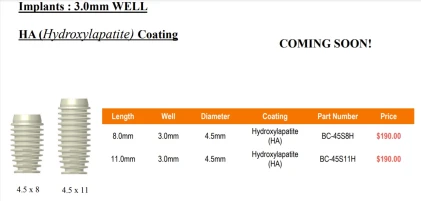

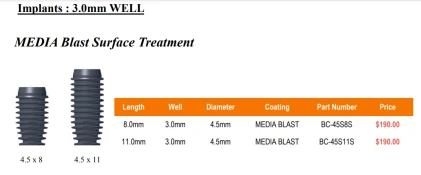

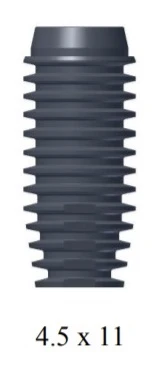

Implant Diameter: 4.5mm. Implant Length: 8.0mm, 11.0mm

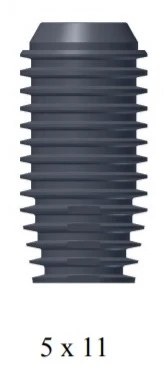

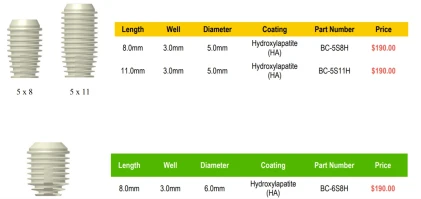

Implant Diameter: 5.0mm. Implant Length: 8.0mm, 11.0mm.

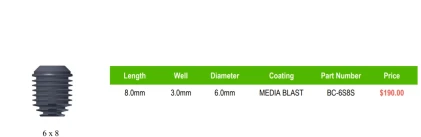

Implant Diameter: 6.0mm. Implant Length: 8.0mm.
Implants with Compatible Platforms
